QC41PN20

QC41PN20

SKU PRE5997178
by Precision Twist Drill
Primary Use: Possible Use:

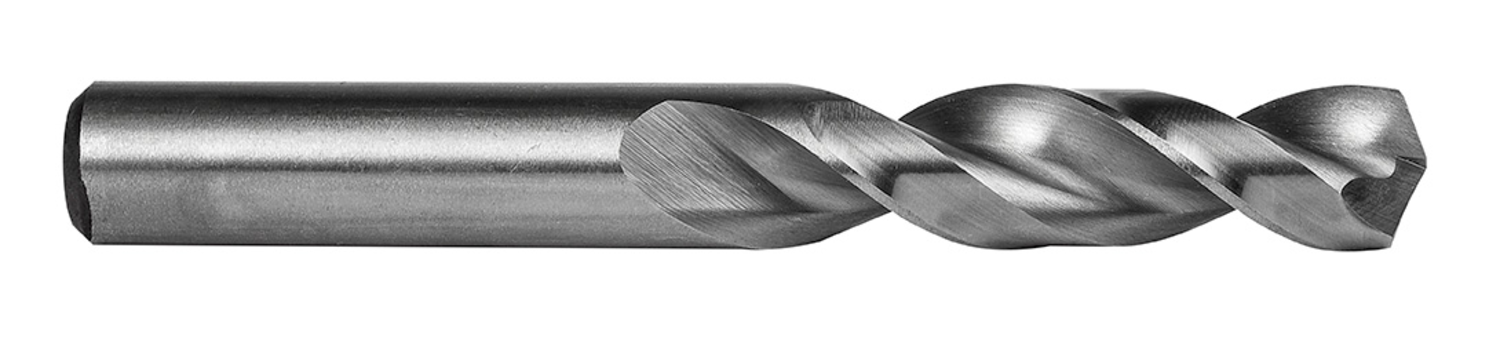

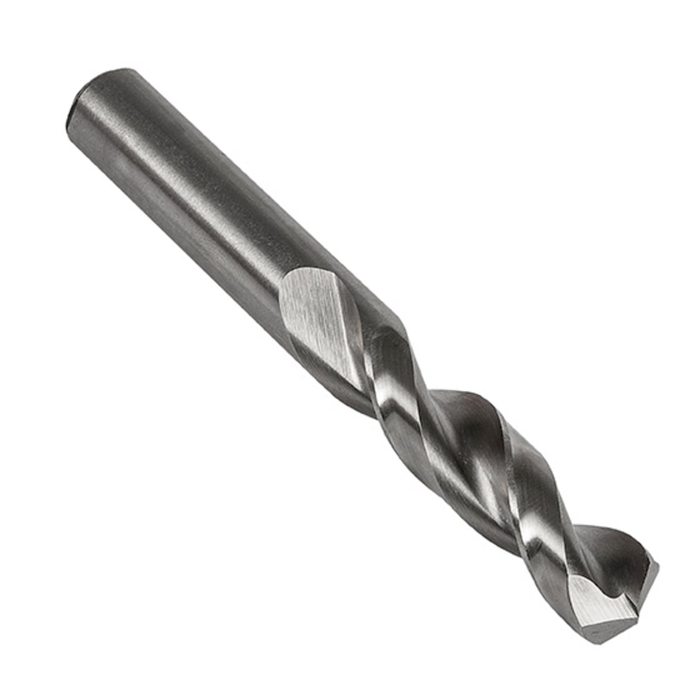

Stub length drill with straight shank, diameter 0.1610" (N20) with an overall length of 2.1/8" and flute length of 1.1/16" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 3xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$4.07 - $4.07
$4.07
$4.07 - $4.07
$4.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

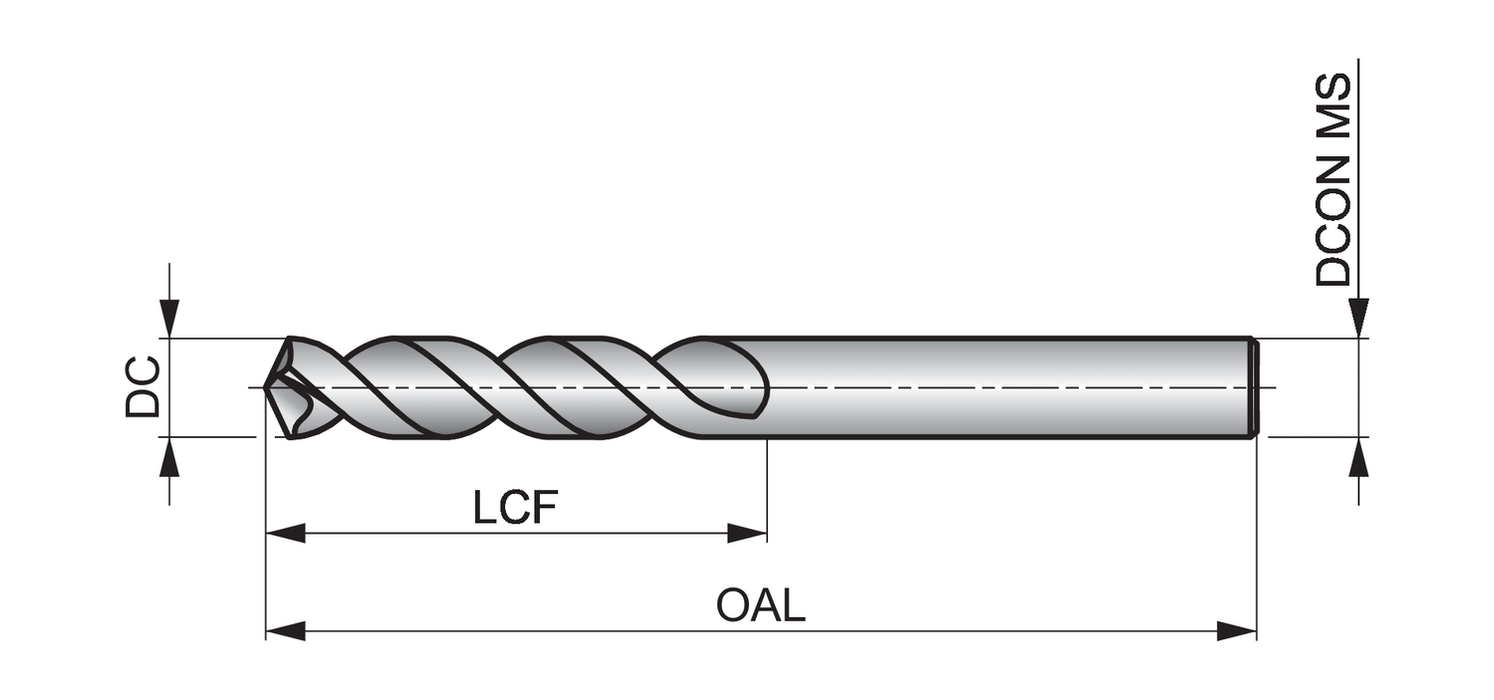

Material: HSS

Cutting Diameter - in (DC): 0.161

Cutting Diameter - mm (DC): 4.09

Drill Point Angle - deg: 135

Flute Length: 1.0625

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.125

Connetion Diameter: 0.161

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 60020

MFG Part Number: 5997178
