QC41PN1

QC41PN1

SKU PRE5997197
by Precision Twist Drill
Primary Use: Possible Use:

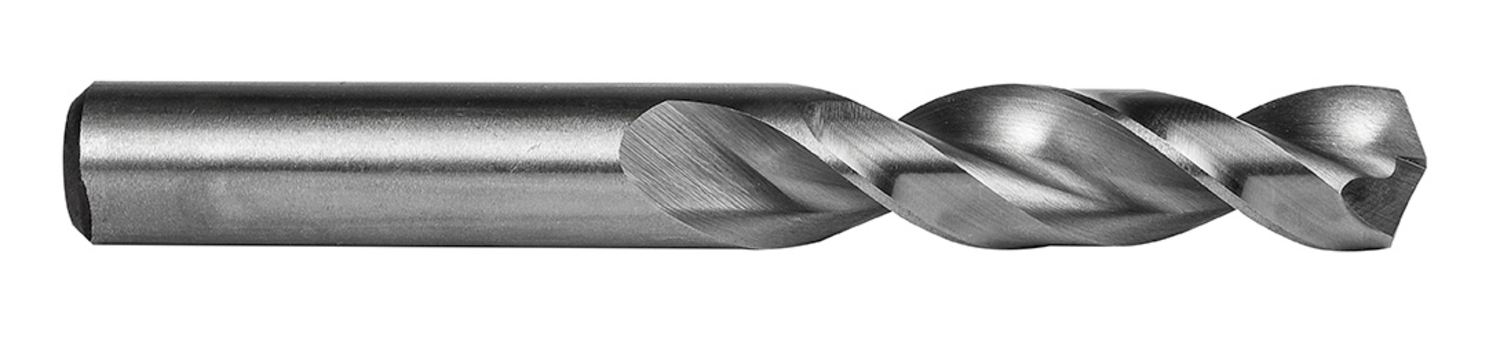

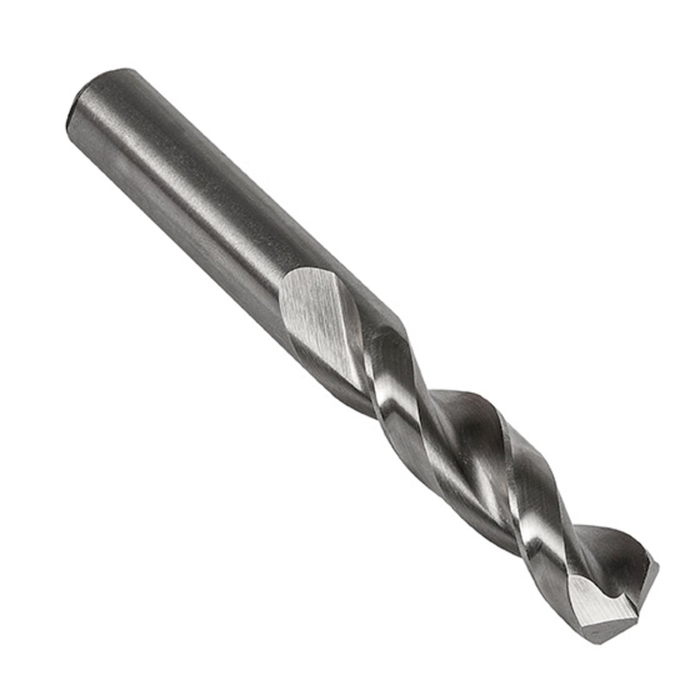

Stub length drill with straight shank, diameter 0.2280" (N1) with an overall length of 2.7/16" and flute length of 1.5/16" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 3xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$6.20 - $6.20
$6.20
$6.20 - $6.20
$6.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

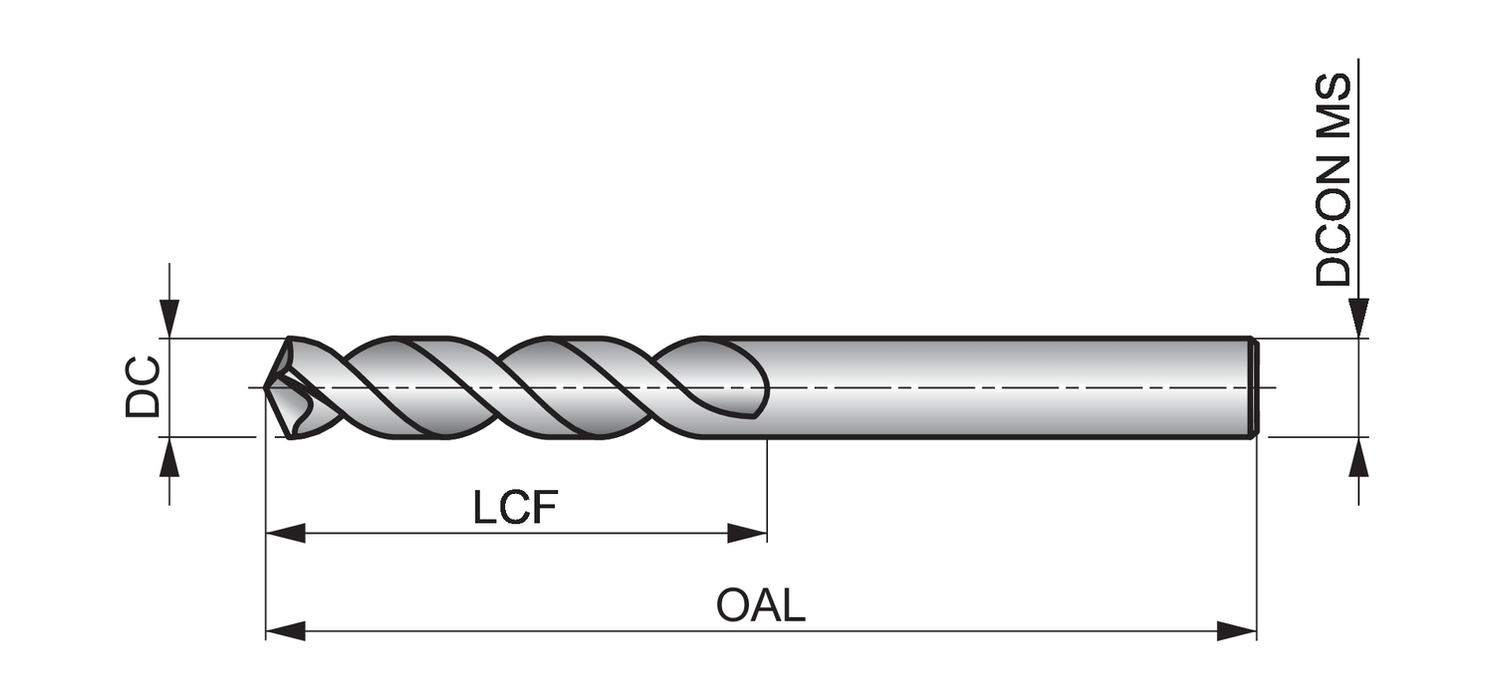

Cutting Diameter - in (DC): 0.228

Cutting Diameter - mm (DC): 5.79

Drill Point Angle - deg: 135

Flute Length: 1.3125

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.4375

Connetion Diameter: 0.228

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 60001

MFG Part Number: 5997197
