QC91P23/64

QC91P23/64

SKU PRE5997230
by Precision Twist Drill
Primary Use: Possible Use:

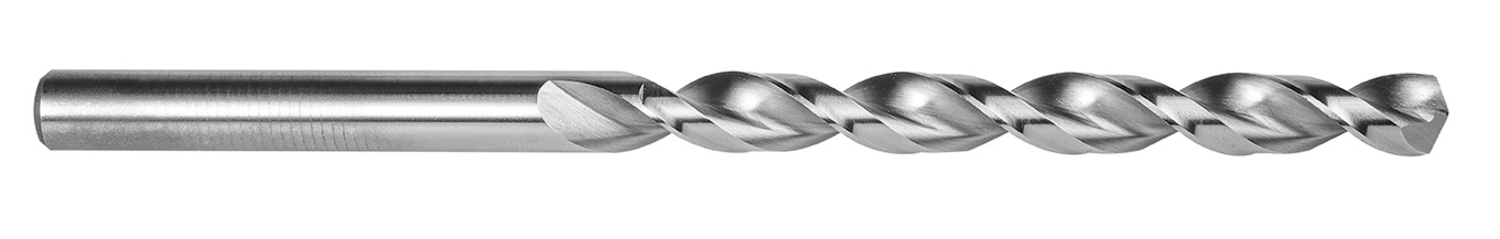

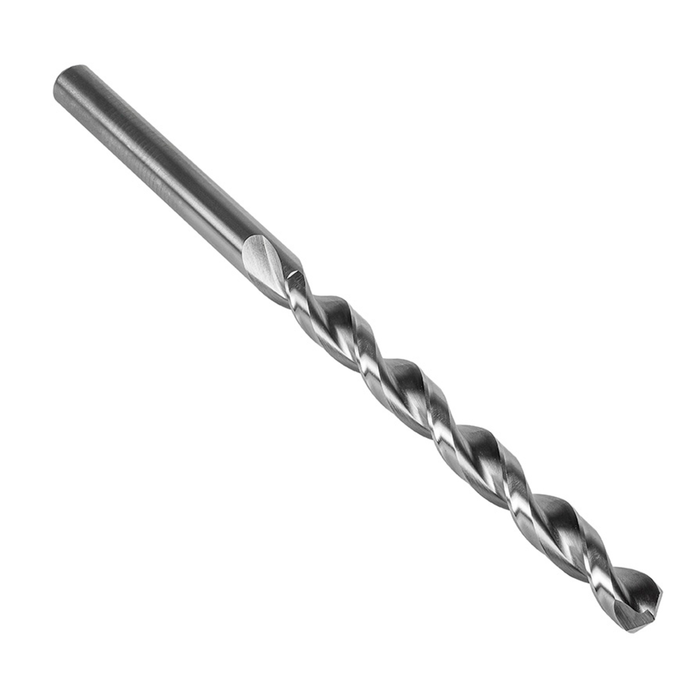

Long series drill with straight shank, diameter 0.3594" (23/64) with an overall length of 6.3/4" and flute length of 4.1/4" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 6xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$31.43 - $31.43
$31.43
$31.43 - $31.43
$31.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.3594

Cutting Diameter - mm (DC): 9.13

Drill Point Angle - deg: 135

Flute Length: 4.25

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 6.75

Connetion Diameter: 0.3594

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 23/64

Grade: Bright

EDP: 57923

MFG Part Number: 5997230
