QC91P5/8

QC91P5/8

SKU PRE5997429
by Precision Twist Drill
Primary Use: Possible Use:

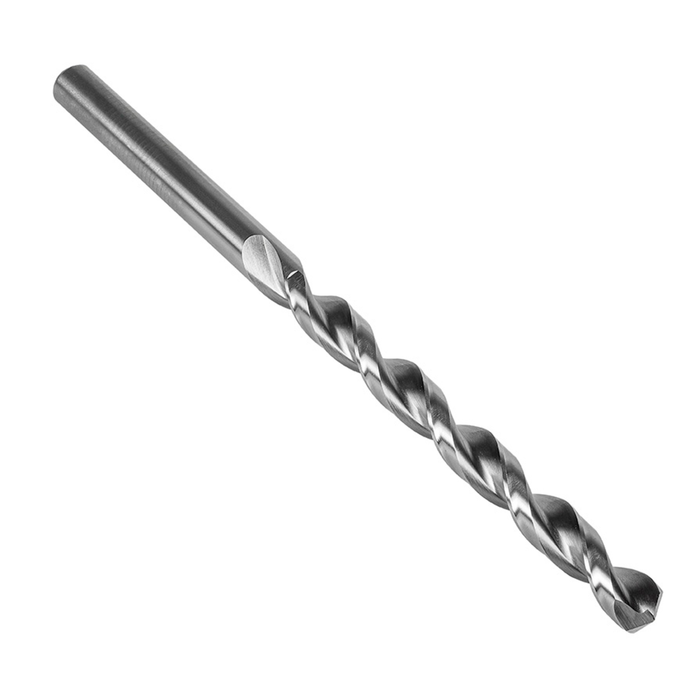

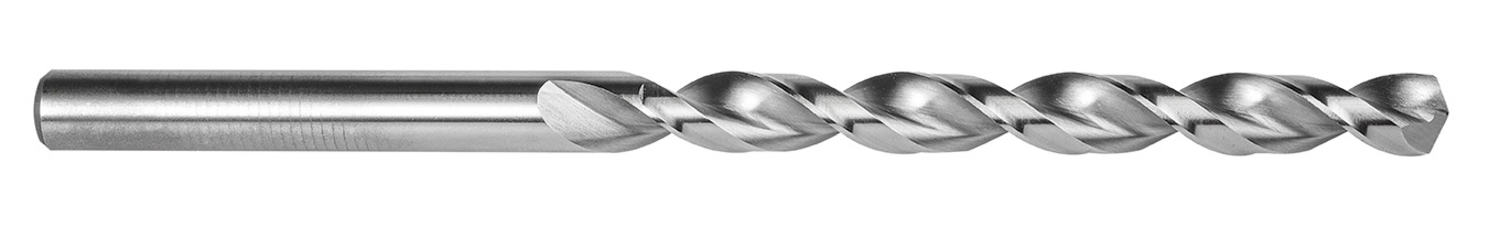

Long series drill with straight shank, diameter 0.6250" (5/8) with an overall length of 8.3/4" and flute length of 4.7/8" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 6xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$126.07 - $126.07
$126.07
$126.07 - $126.07
$126.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.625

Cutting Diameter - mm (DC): 15.88

Drill Point Angle - deg: 135

Flute Length: 4.875

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 8.75

Connetion Diameter: 0.625

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/8

Grade: Bright

EDP: 57940

MFG Part Number: 5997429
