QC41P37/64
QC41P37/64
QC41P37/64

QC41P37/64

SKU PRE5997567
by Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.14 CAD - $57.14 CAD
$57.14 CAD
$57.14 CAD - $57.14 CAD
$57.14 CAD

Sold in packs of: 1

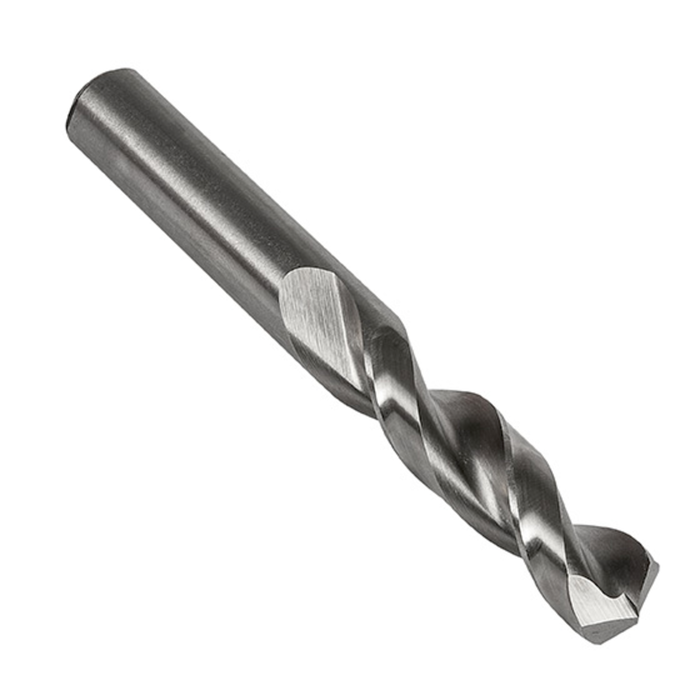

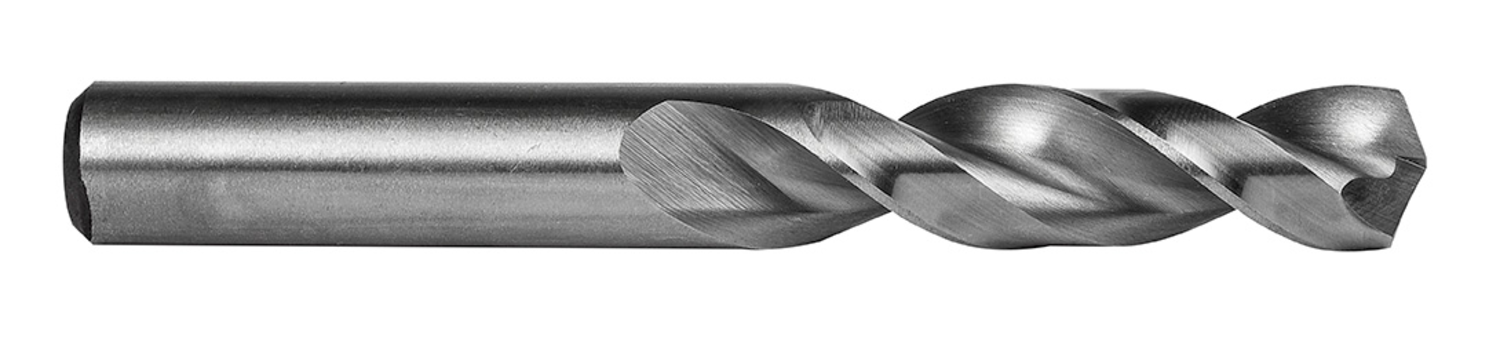

Stub length drill with straight shank, diameter 0.5781" (37/64) with an overall length of 4.1/8" and flute length of 2.5/8" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 3xD drilling without pecking in steel and non-ferrous material

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC41P37/64
GradeBright
Product Number5997567
Product FamilyQC41P
Dimensions
Cutting Diameter — in (DC)0.5781"
Cutting Diameter — mm (DC)14.68 mm
Cutting Diameter — Fractional37/64
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.5781"
Connection Dia. — mm (DCON)14.68 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number58337
File Type Download
QC41P37/64 — 3D Model STP Download
QC41P37/64 — Line Drawing PDF Download
