QC91PN1

QC91PN1

SKU PRE5997960
by Precision Twist Drill
Primary Use: Possible Use:

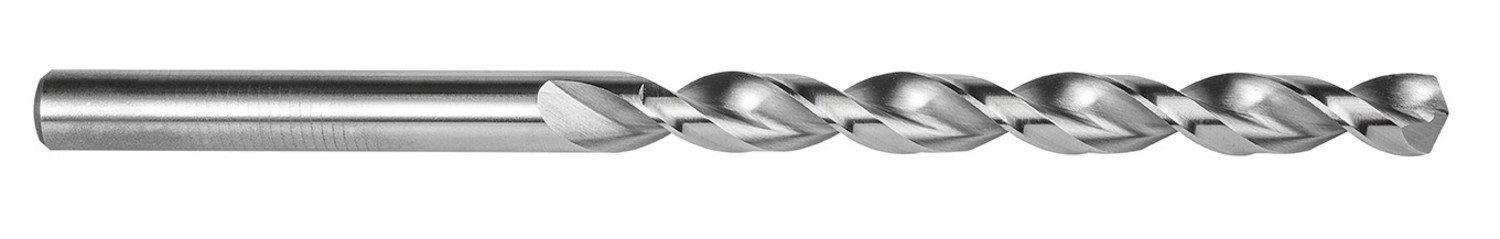

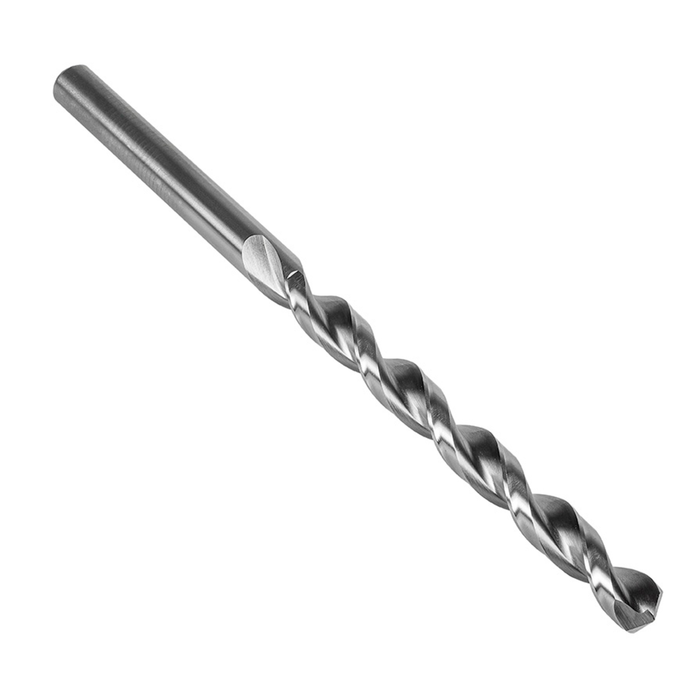

Long series drill with straight shank, diameter 0.2280" (N1) with an overall length of 6.1/8" and flute length of 3.3/4" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 6xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$20.76 - $20.76
$20.76
$20.76 - $20.76
$20.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.228

Cutting Diameter - mm (DC): 5.79

Drill Point Angle - deg: 135

Flute Length: 3.75

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 6.125

Connetion Diameter: 0.228

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 59401

MFG Part Number: 5997960
