R10B7/32

R10B7/32

SKU PRE5998034
by Precision Twist Drill
Primary Use: Possible Use:

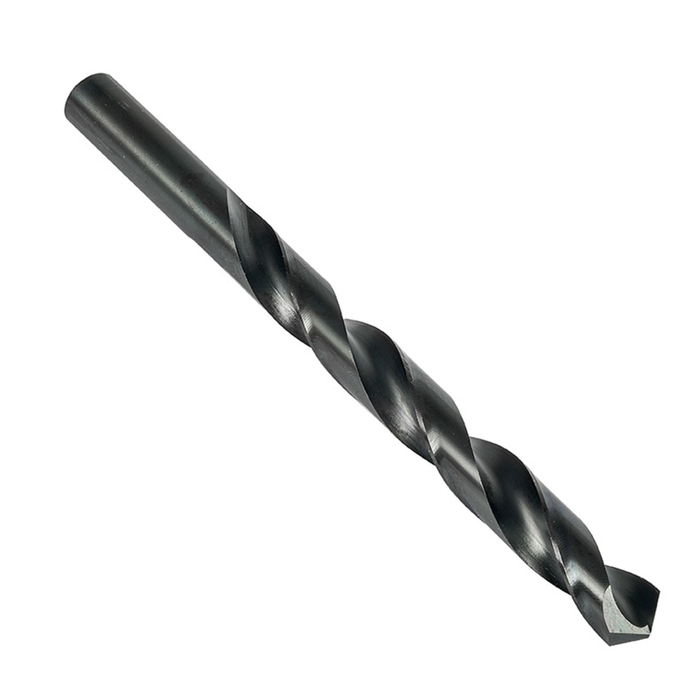

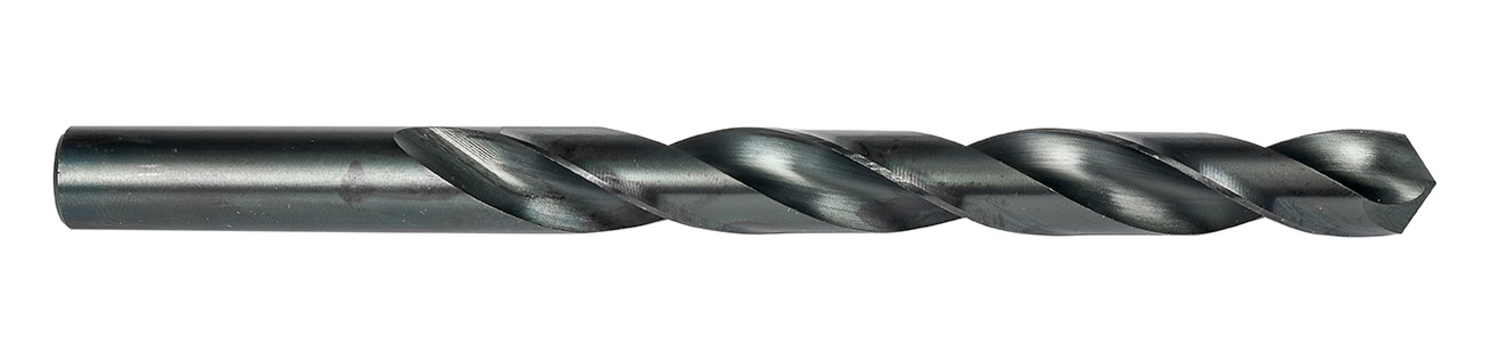

Jobber length drill with straight shank, diameter 0.2188" (7/32) with an overall length of 3.3/4" and flute length of 2.1/2" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.74 - $3.74
$3.74
$3.74 - $3.74
$3.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2188

Cutting Diameter - mm (DC): 5.56

Drill Point Angle - deg: 135

Flute Length: 2.5

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.75

Connetion Diameter: 0.2188

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 7/32

Grade: Steam Tempered

EDP: 10214

MFG Part Number: 5998034
