R10CO23/64

R10CO23/64

SKU PRE5998160
by Precision Twist Drill
Primary Use: Possible Use:

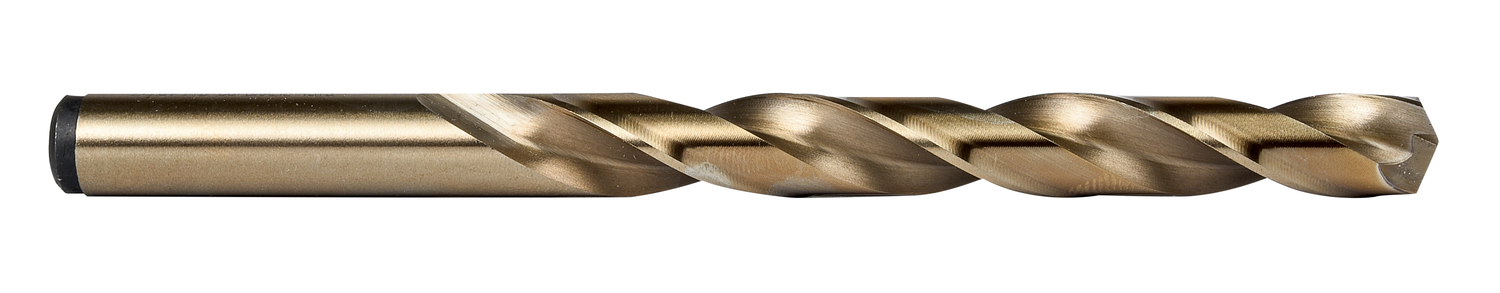

Jobber length drill with straight shank, diameter 0.3594" (23/64) with an overall length of 4.7/8" and flute length of 3.1/2" according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$15.47 - $15.47
$15.47
$15.47 - $15.47
$15.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3594

Cutting Diameter - mm (DC): 9.13

Drill Point Angle - deg: 135

Flute Length: 3.5

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.875

Connetion Diameter: 0.3594

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 23/64

Grade: Bronze

EDP: 10323

MFG Part Number: 5998160
