R10P5/8

R10P5/8

SKU PRE5998328
by Precision Twist Drill
Primary Use: Possible Use:

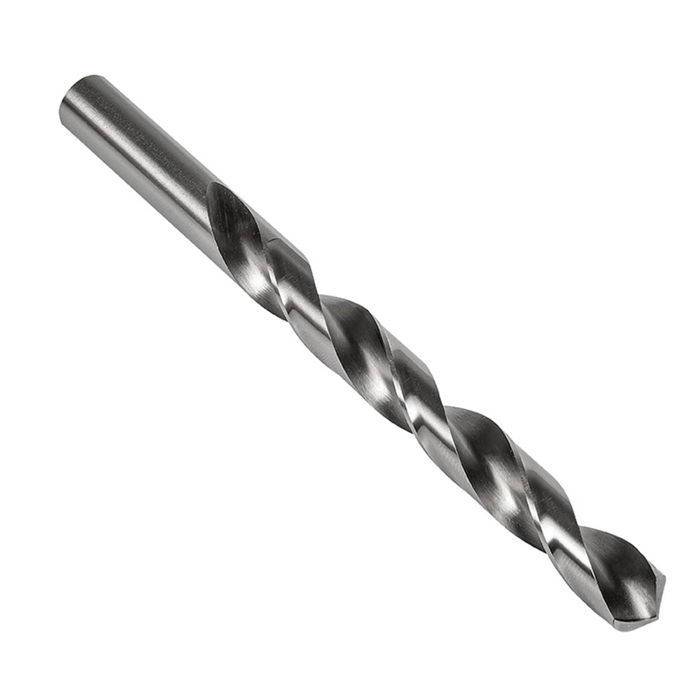

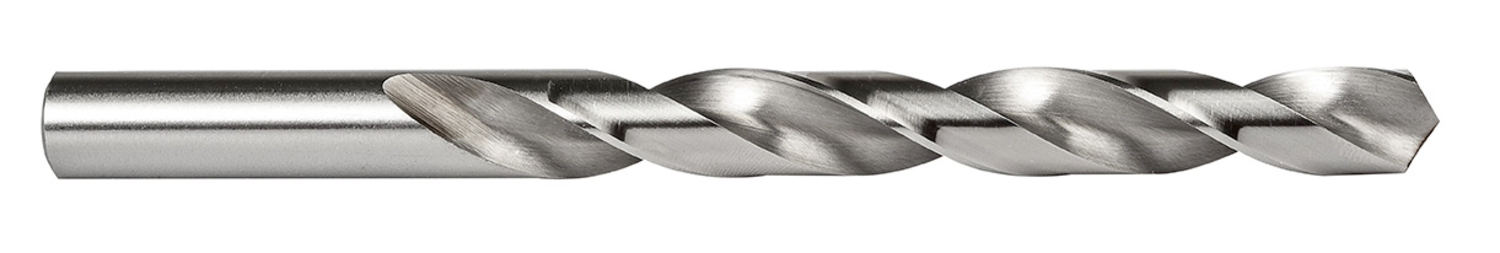

Jobber length drill with straight shank, diameter 0.6250" (5/8) with an overall length of 7.1/8" and flute length of 5.3/16" according to ANSI standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$33.56 - $33.56
$33.56
$33.56 - $33.56
$33.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.625

Cutting Diameter - mm (DC): 15.88

Drill Point Angle - deg: 118

Flute Length: 5.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 7.125

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/8

Grade: Bright

EDP: 10640

MFG Part Number: 5998328
