R10P9/16

R10P9/16

SKU PRE5998343
by Precision Twist Drill
Primary Use: Possible Use:

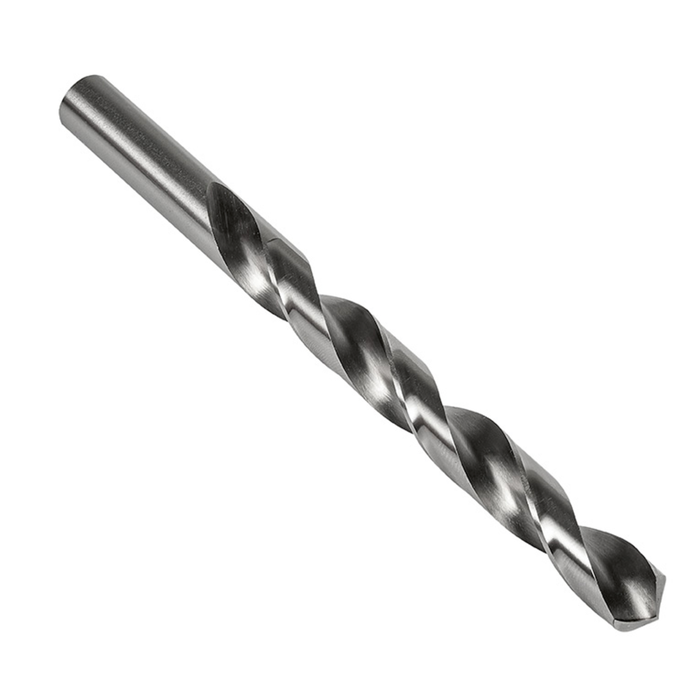

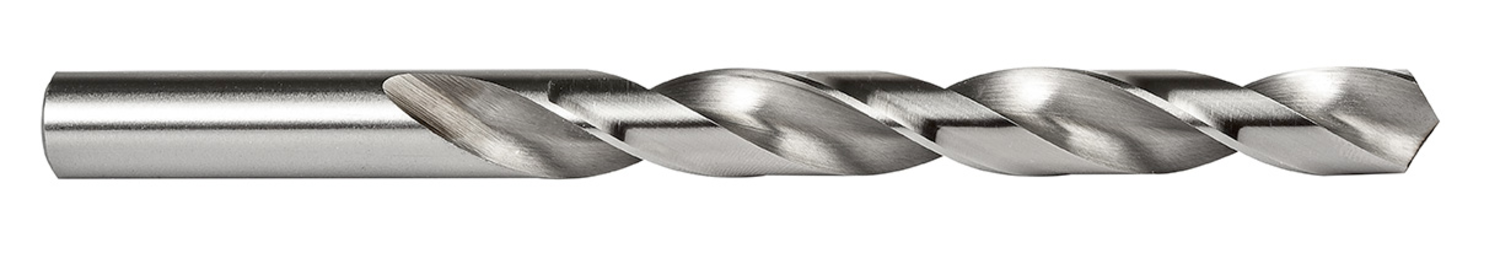

Jobber length drill with straight shank, diameter 0.5625" (9/16) with an overall length of 6.5/8" and flute length of 4.13/16" according to ANSI standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$30.47 - $30.47
$30.47
$30.47 - $30.47
$30.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.5625

Cutting Diameter - mm (DC): 14.29

Drill Point Angle - deg: 118

Flute Length: 4.8125

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.625

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/16

Grade: Bright

EDP: 10636

MFG Part Number: 5998343
