R401.3/16

R401.3/16

SKU PRE5998536
by Precision Twist Drill
Primary Use: Possible Use:

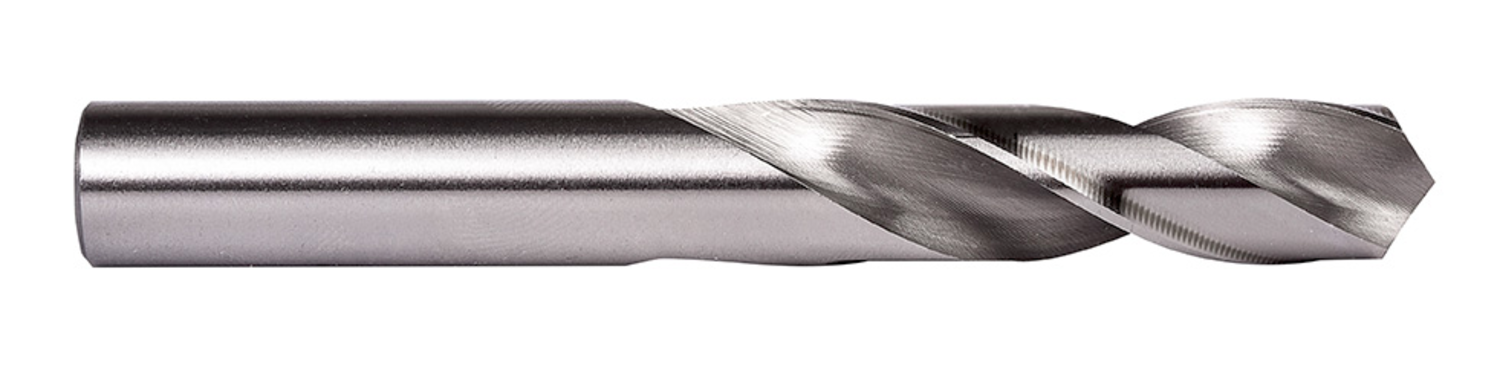

Stub length drill with 1" reduced straight shank, diameter 1.1875" (1.3/16) with an overall length of 6.5/8" and flute length of 4.1/4" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$139.20 - $139.20
$139.20
$139.20 - $139.20
$139.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 1.1875

Cutting Diameter - mm (DC): 30.16

Drill Point Angle - deg: 118

Flute Length: 4.25

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 6.625

Connetion Diameter: 1.1875

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1.3/16

Grade: Steam Tempered

EDP: 40612

MFG Part Number: 5998536
