R4063/64

R4063/64

SKU PRE5998568
by Precision Twist Drill
Primary Use: Possible Use:

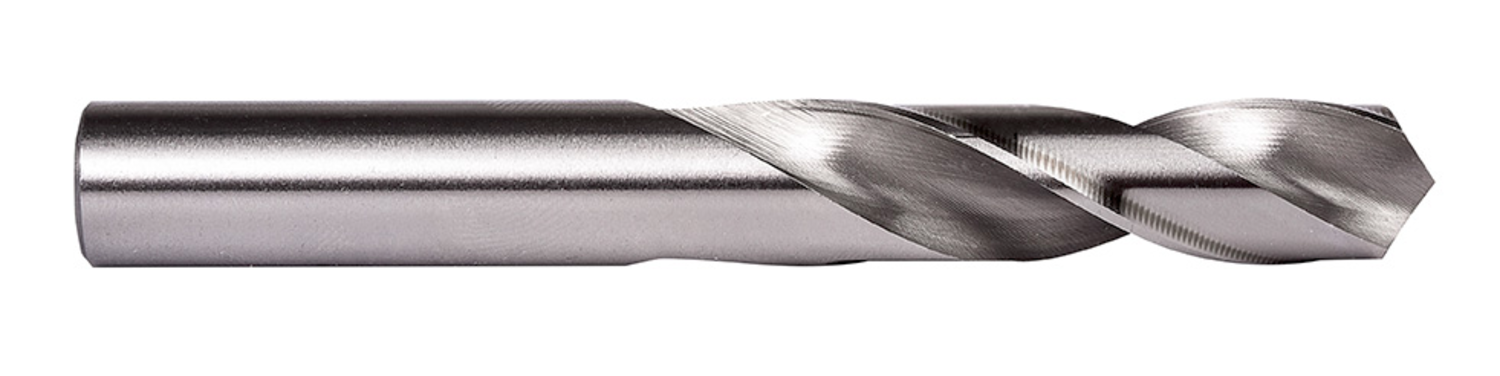

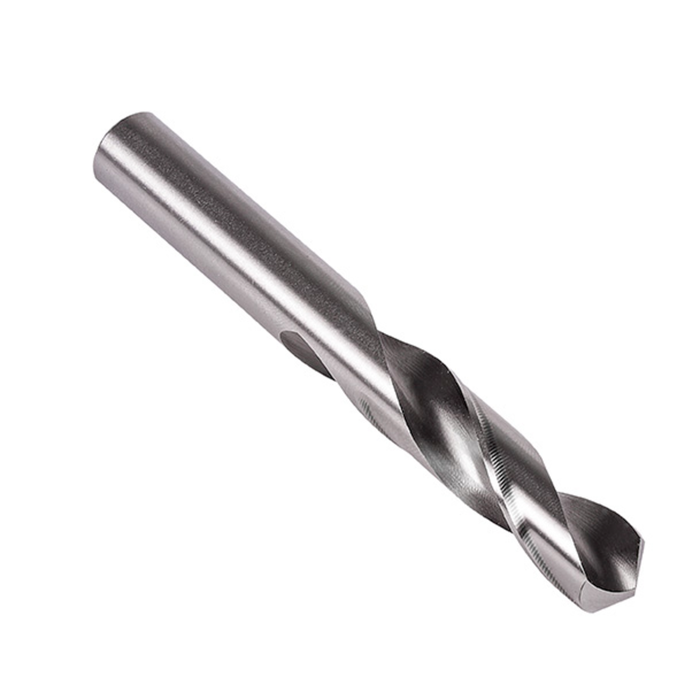

Stub length drill with straight shank, diameter 0.9844" (63/64) with an overall length of 6" and flute length of 4" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$96.53 - $96.53
$96.53
$96.53 - $96.53
$96.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.9844

Cutting Diameter - mm (DC): 25.0

Drill Point Angle - deg: 118

Flute Length: 4.0

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 6.0

Connetion Diameter: 0.9844

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 63/64

Grade: Steam Tempered

EDP: 40563

MFG Part Number: 5998568
