R409/32

R409/32

SKU PRE5998585
by Precision Twist Drill
Primary Use: Possible Use:

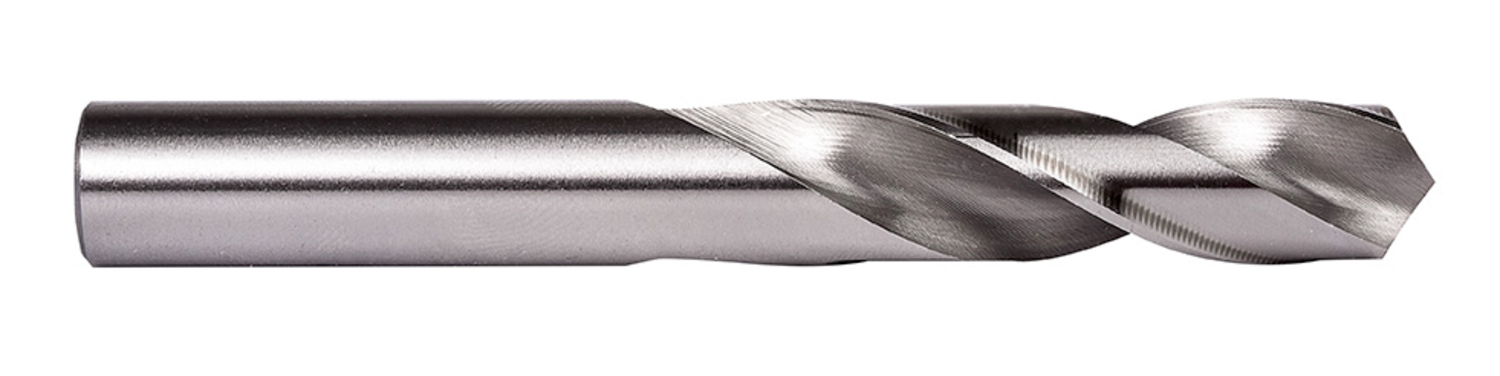

Stub length drill with straight shank, diameter 0.2813" (9/32) with an overall length of 2.11/16" and flute length of 1.1/2" according to ANSI standard with 118° point angle, HSS with bright finish for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$4.64 - $4.64
$4.64
$4.64 - $4.64
$4.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2813

Cutting Diameter - mm (DC): 7.15

Drill Point Angle - deg: 118

Flute Length: 1.5

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.6875

Connetion Diameter: 0.2813

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/32

Grade: Bright

EDP: 40018

MFG Part Number: 5998585
