R4017/32

R4017/32

SKU PRE5998621
by Precision Twist Drill
Primary Use: Possible Use:

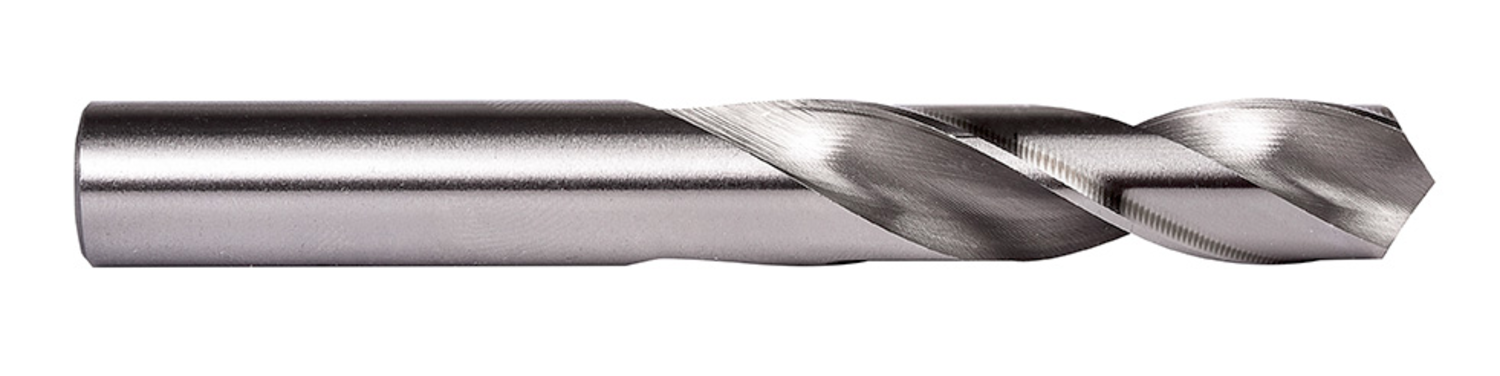

Stub length drill with straight shank, diameter 0.5313" (17/32) with an overall length of 3.7/8" and flute length of 2.3/8" according to ANSI standard with 118° point angle, HSS with bright finish for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$31.77 - $31.77
$31.77
$31.77 - $31.77
$31.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.5313

Cutting Diameter - mm (DC): 13.5

Drill Point Angle - deg: 118

Flute Length: 2.375

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.875

Connetion Diameter: 0.5313

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/32

Grade: Bright

EDP: 40034

MFG Part Number: 5998621
