R101/64

R101/64

SKU PRE5998664
by Precision Twist Drill
Primary Use: Possible Use:

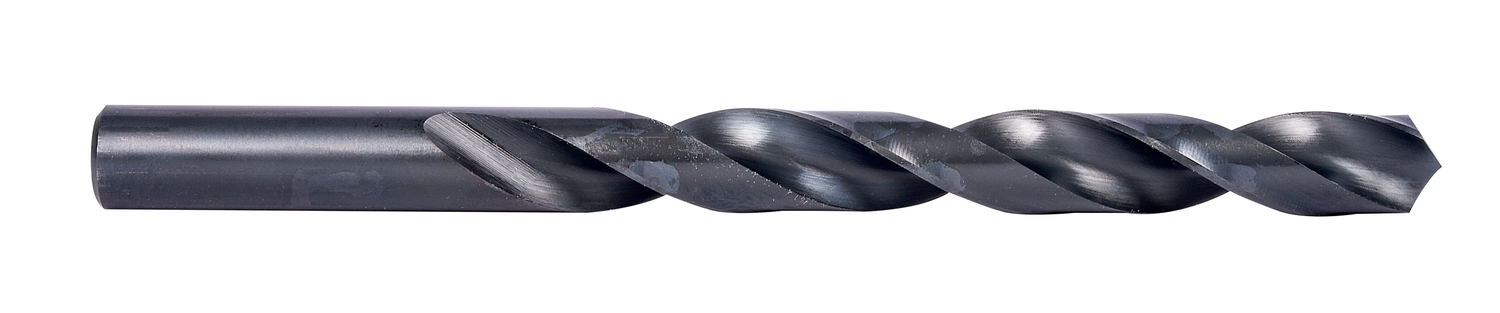

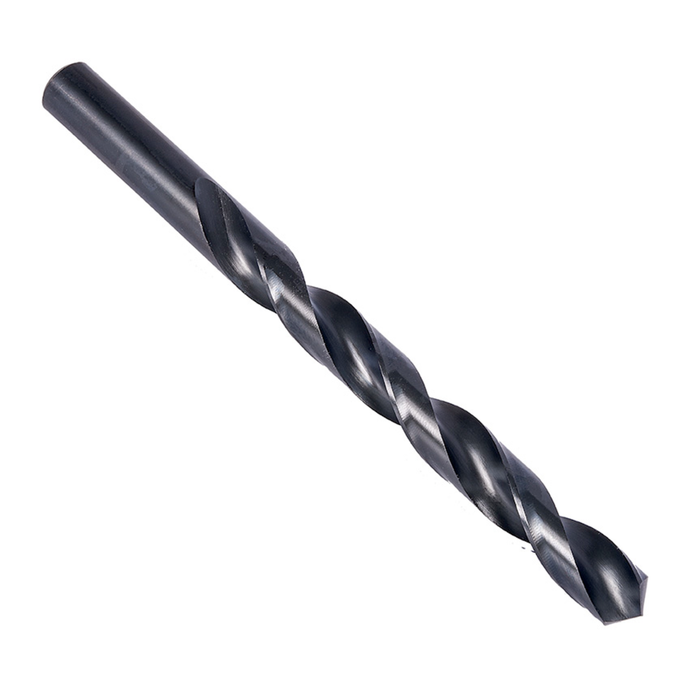

Jobber length drill with straight shank, diameter 0.0156" (1/64) with an overall length of 3/4" and flute length of 3/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.39 - $3.39
$3.39
$3.39 - $3.39
$3.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0156

Cutting Diameter - mm (DC): 0.4

Drill Point Angle - deg: 118

Flute Length: 0.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 0.75

Connetion Diameter: 0.0156

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/64

Grade: Steam Tempered

EDP: 10001

MFG Part Number: 5998664
