R41CN6

R41CN6

SKU PRE5998669
by Precision Twist Drill
Primary Use: Possible Use:

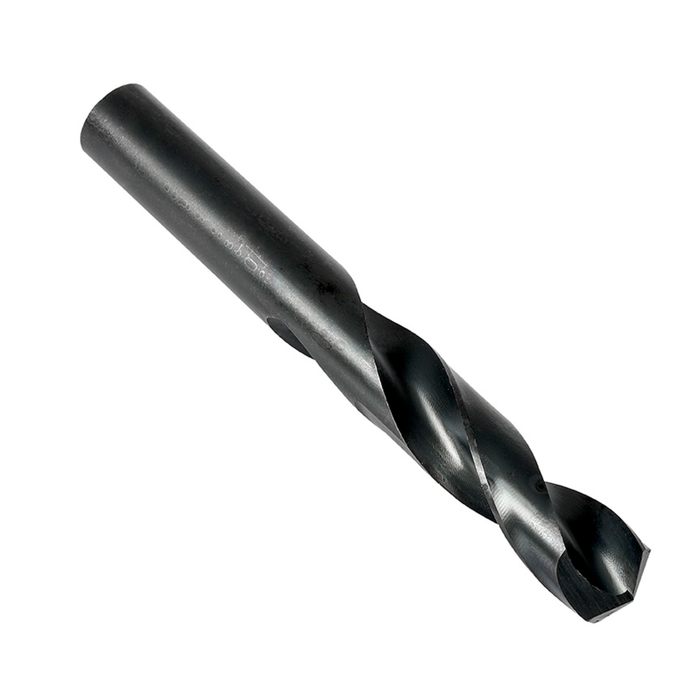

Stub length drill with straight shank, diameter 0.2040" (N6) with an overall length of 2.3/8" and flute length of 1.1/4" according to NAS907 Type C standard with 135° heavy duty split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.71 - $3.71
$3.71
$3.71 - $3.71
$3.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.204

Cutting Diameter - mm (DC): 5.18

Drill Point Angle - deg: 135

Flute Length: 1.25

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.375

Connetion Diameter: 0.204

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 41806

MFG Part Number: 5998669
