R15BG

R15BG

SKU PRE5998761
by Precision Twist Drill
Primary Use: Possible Use:

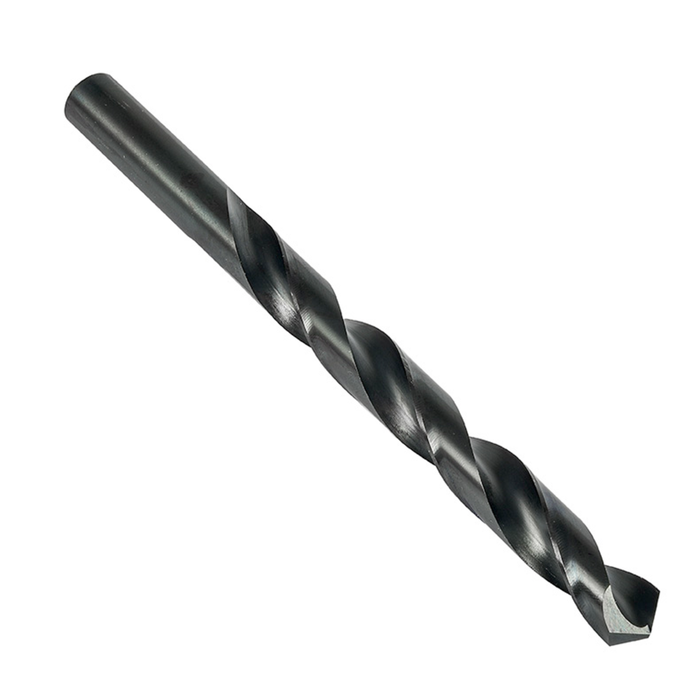

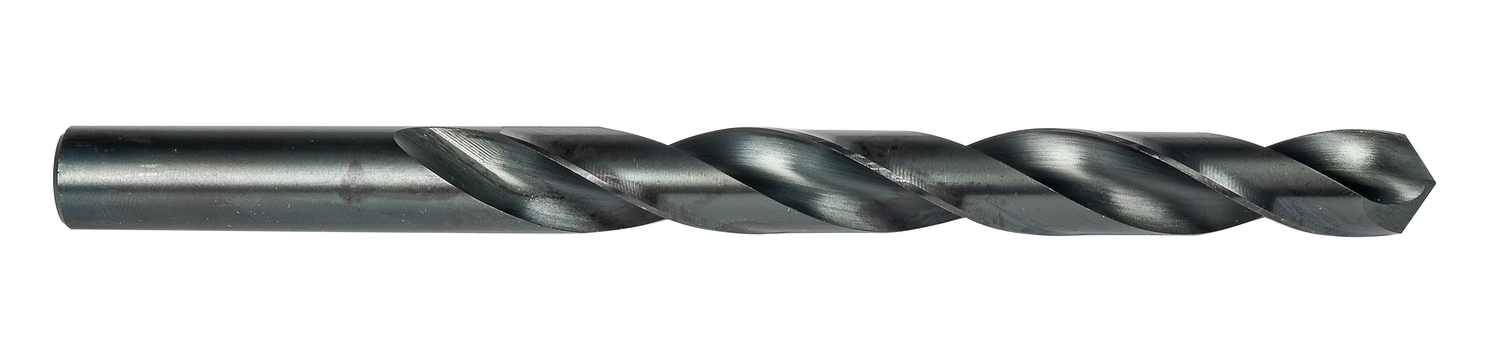

Jobber length drill with straight shank, diameter 0.2610" (G) with an overall length of 4.1/8" and flute length of 2.7/8" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$5.94 - $5.94
$5.94
$5.94 - $5.94
$5.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.261

Cutting Diameter - mm (DC): 6.63

Drill Point Angle - deg: 135

Flute Length: 2.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.125

Connetion Diameter: 0.261

Tool Direction: Right

Shank: Cylindrical shank

Letter: G

Grade: Steam Tempered

EDP: 15207

MFG Part Number: 5998761
