R511.1/16

R511.1/16

SKU PRE5998973
by Precision Twist Drill
Primary Use: Possible Use:

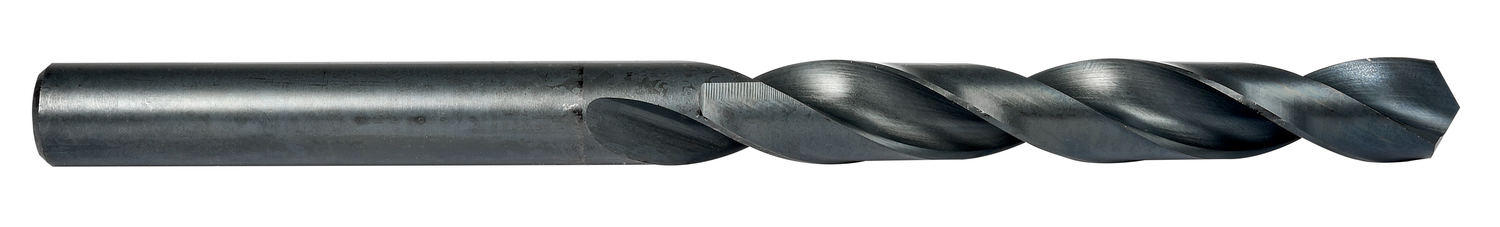

Long series drill with straight shank, diameter 1.0625" (1.1/16) with an overall length of 11.1/4" and flute length of 6.5/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$166.54 - $166.54
$166.54
$166.54 - $166.54
$166.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 1.0625

Cutting Diameter - mm (DC): 26.99

Drill Point Angle - deg: 118

Flute Length: 6.625

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 11.25

Connetion Diameter: 1.0625

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1.1/16

Grade: Steam Tempered

EDP: 51104

MFG Part Number: 5998973
