R18AN23

R18AN23

SKU PRE5999335
by Precision Twist Drill
Primary Use: Possible Use:

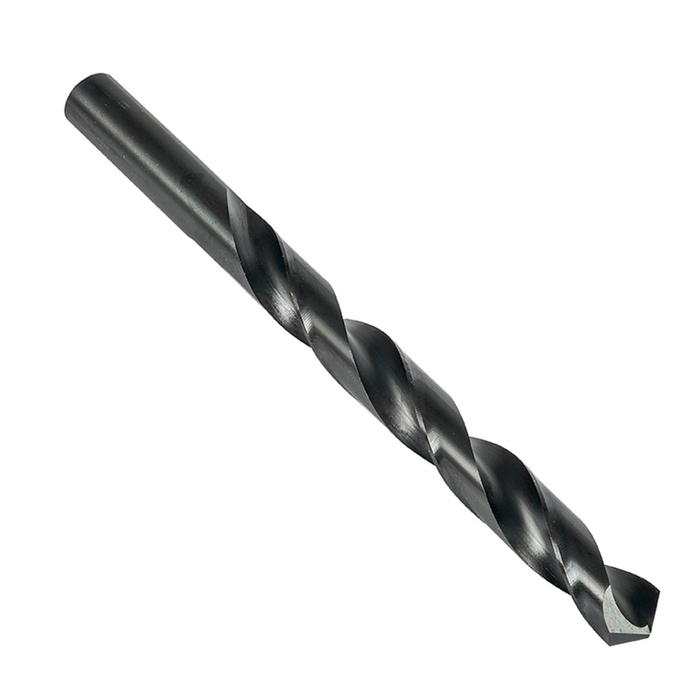

Jobber length drill with straight shank, diameter 0.1540" (N23) with an overall length of 3.1/8" and flute length of 2" according to NAS907 Type A standard with 118° general purpose split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$2.63 - $2.63
$2.63
$2.63 - $2.63
$2.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.154

Cutting Diameter - mm (DC): 3.91

Drill Point Angle - deg: 118

Flute Length: 2.0

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.125

Connetion Diameter: 0.154

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 18123

MFG Part Number: 5999335
