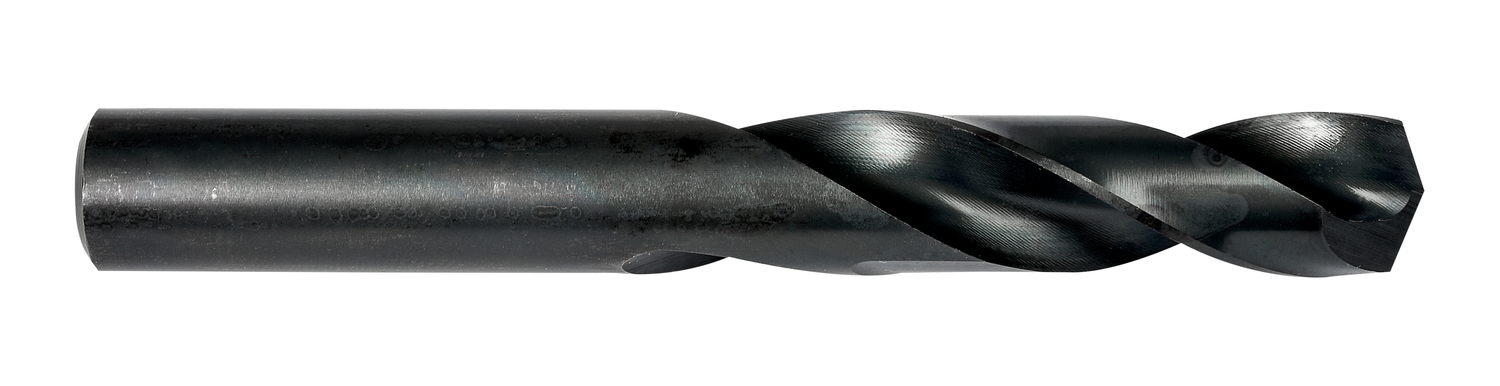

R40C11/32

R40C11/32

SKU PRE5999412
by Precision Twist Drill
Primary Use: Possible Use:

Stub length drill with straight shank, diameter 0.3438" (11/32) with an overall length of 3" and flute length of 1.11/16" according to NAS907 Type C standard with 135° heavy duty split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$7.51 - $7.51
$7.51
$7.51 - $7.51
$7.51
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.3438

Cutting Diameter - mm (DC): 8.73

Drill Point Angle - deg: 135

Flute Length: 1.6875

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.0

Connetion Diameter: 0.3438

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 11/32

Grade: Steam Tempered

EDP: 40822

MFG Part Number: 5999412
