R40C13/32

R40C13/32

SKU PRE5999418
by Precision Twist Drill
Primary Use: Possible Use:

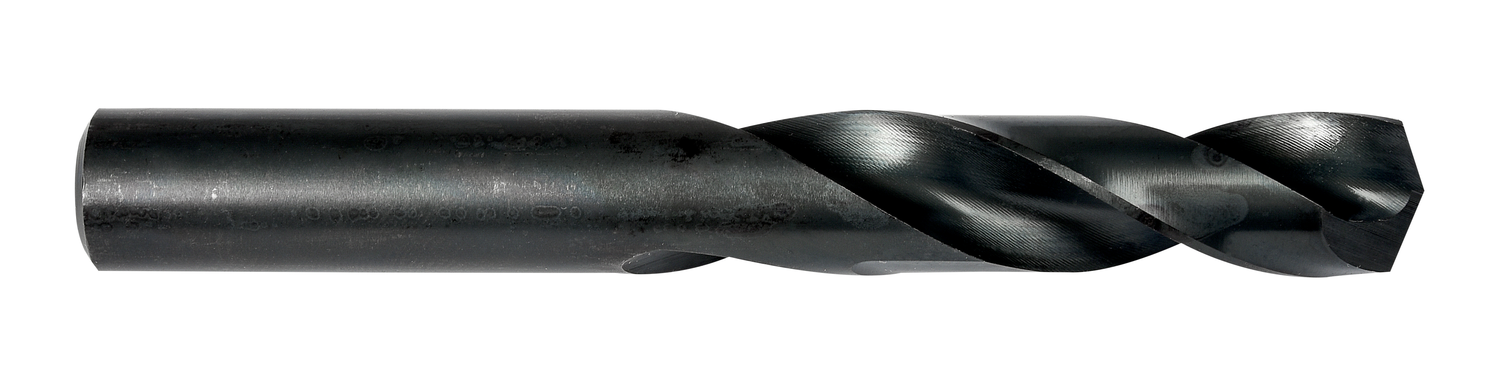

Stub length drill with straight shank, diameter 0.4063" (13/32) with an overall length of 3.5/16" and flute length of 1.15/16" according to NAS907 Type C standard with 135° heavy duty split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$10.54 - $10.54
$10.54
$10.54 - $10.54
$10.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.4063

Cutting Diameter - mm (DC): 10.32

Drill Point Angle - deg: 135

Flute Length: 1.9375

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.3125

Connetion Diameter: 0.4063

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 13/32

Grade: Steam Tempered

EDP: 40826

MFG Part Number: 5999418
