R5117/32

R5117/32

SKU PRE5999707
by Precision Twist Drill
Primary Use: Possible Use:

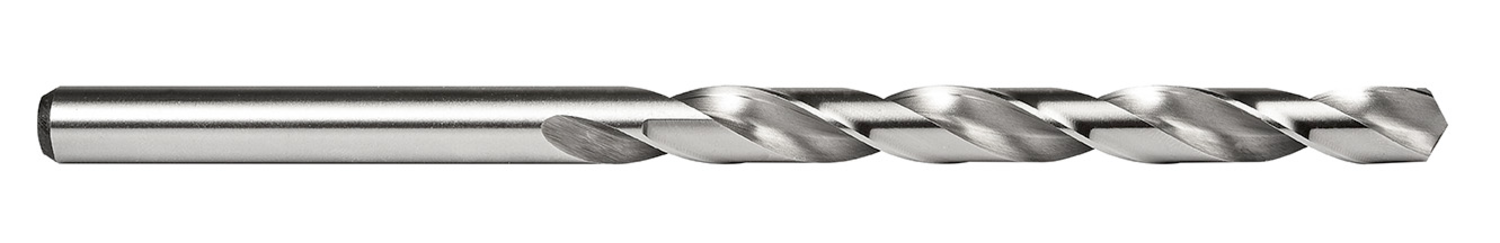

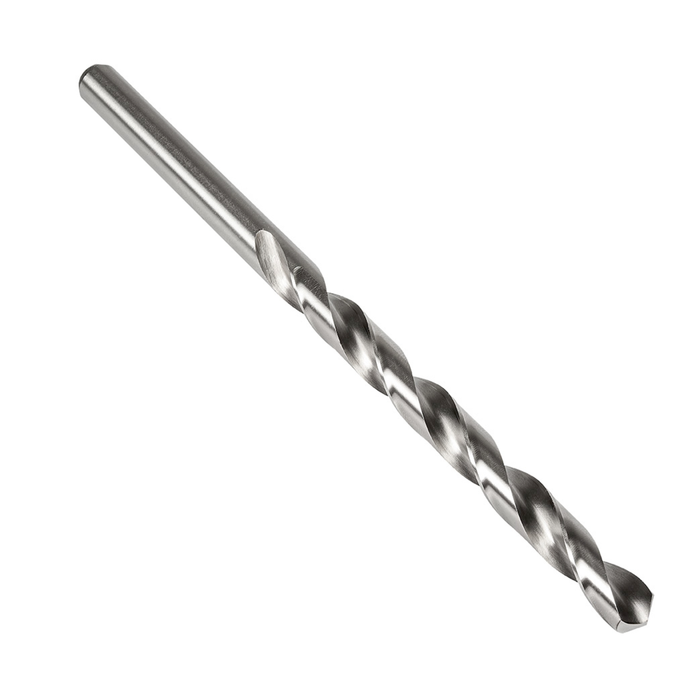

Long series drill with straight shank, diameter 0.5313" (17/32) with an overall length of 8" and flute length of 4.3/4" according to ANSI standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$38.16 - $38.16
$38.16
$38.16 - $38.16
$38.16
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

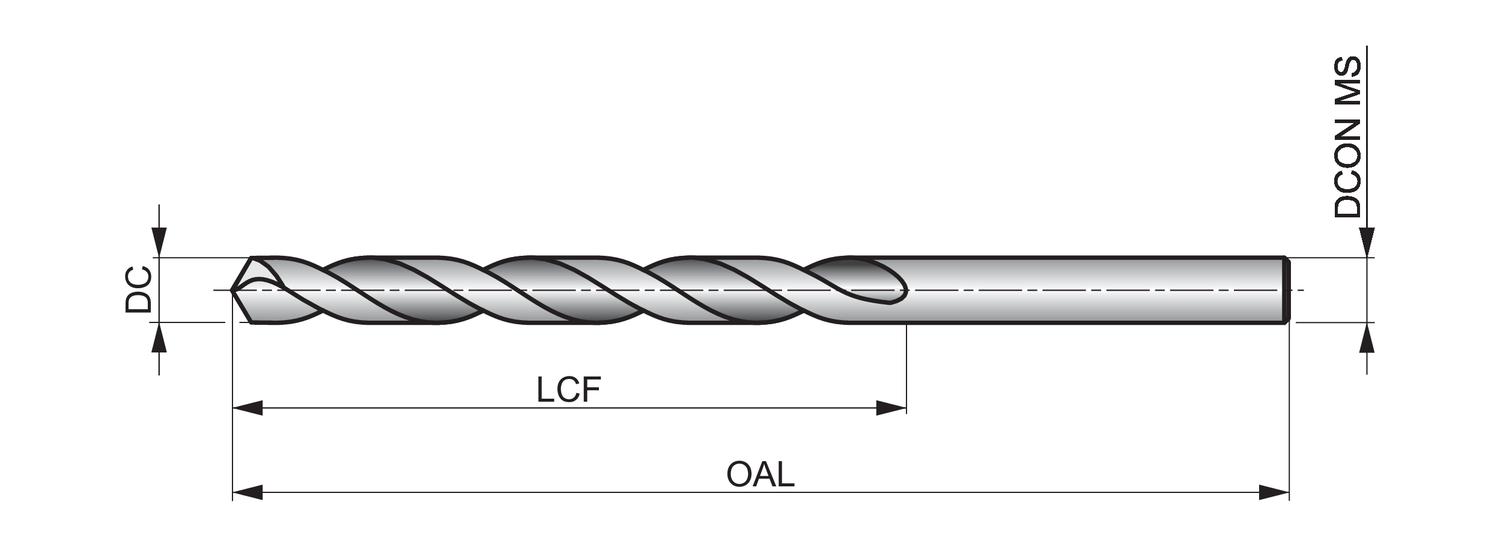

Cutting Diameter - in (DC): 0.5313

Cutting Diameter - mm (DC): 13.5

Drill Point Angle - deg: 118

Flute Length: 4.75

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 8.0

Connetion Diameter: 0.5313

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 17/32

Grade: Bright

EDP: 51034

MFG Part Number: 5999707
