R88CO3/32

R88CO3/32

SKU PRE5999740
by Precision Twist Drill
Primary Use: Possible Use:

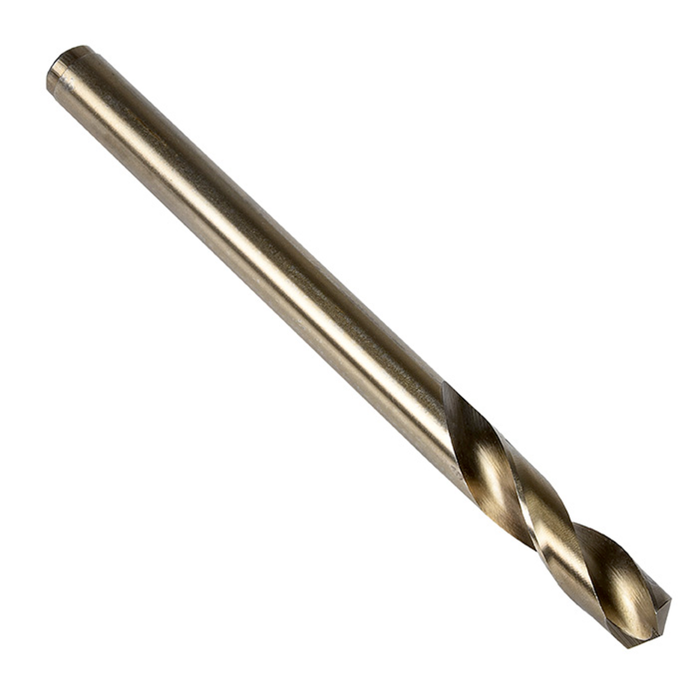

Jobber length drill with straight shank, diameter 0.0938" (3/32) with an overall length of 2.1/4" and flute length of 5/8" according to NAS907 Type D standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 3xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.46 - $3.46
$3.46
$3.46 - $3.46
$3.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

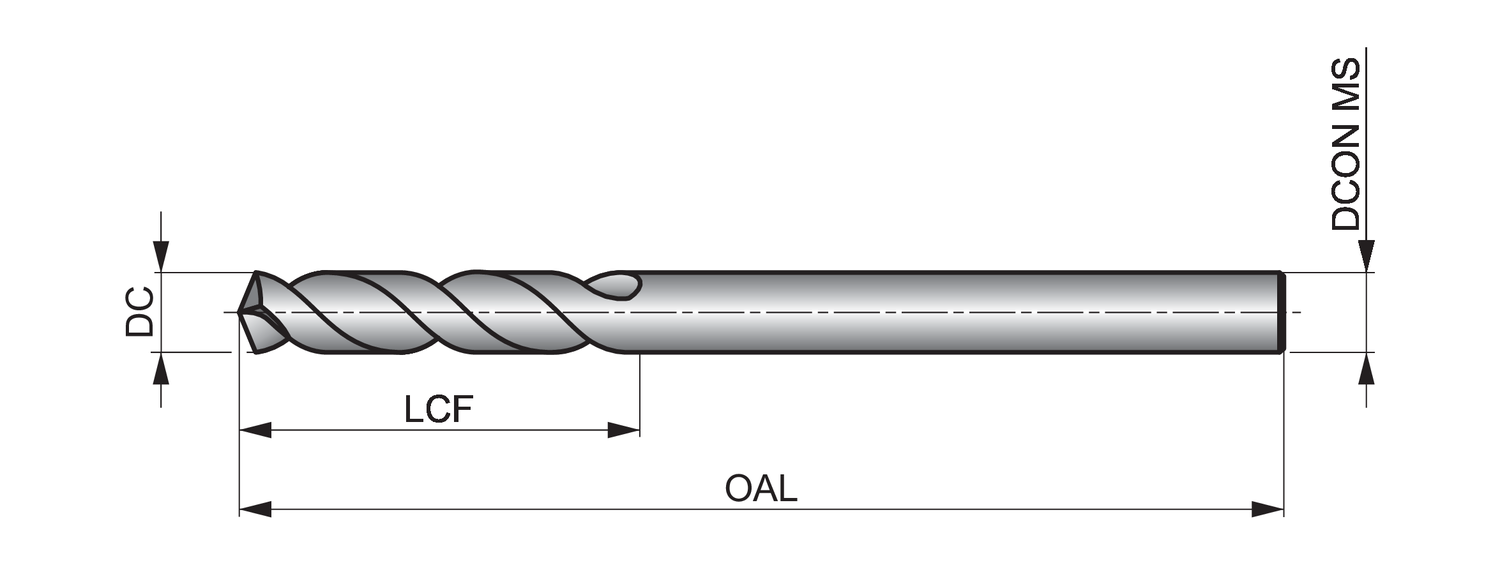

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 135

Flute Length: 0.625

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.25

Connetion Diameter: 0.0938

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Bronze

EDP: 58706

MFG Part Number: 5999740
