R513/32

R513/32

SKU PRE5999759
by Precision Twist Drill
Primary Use: Possible Use:

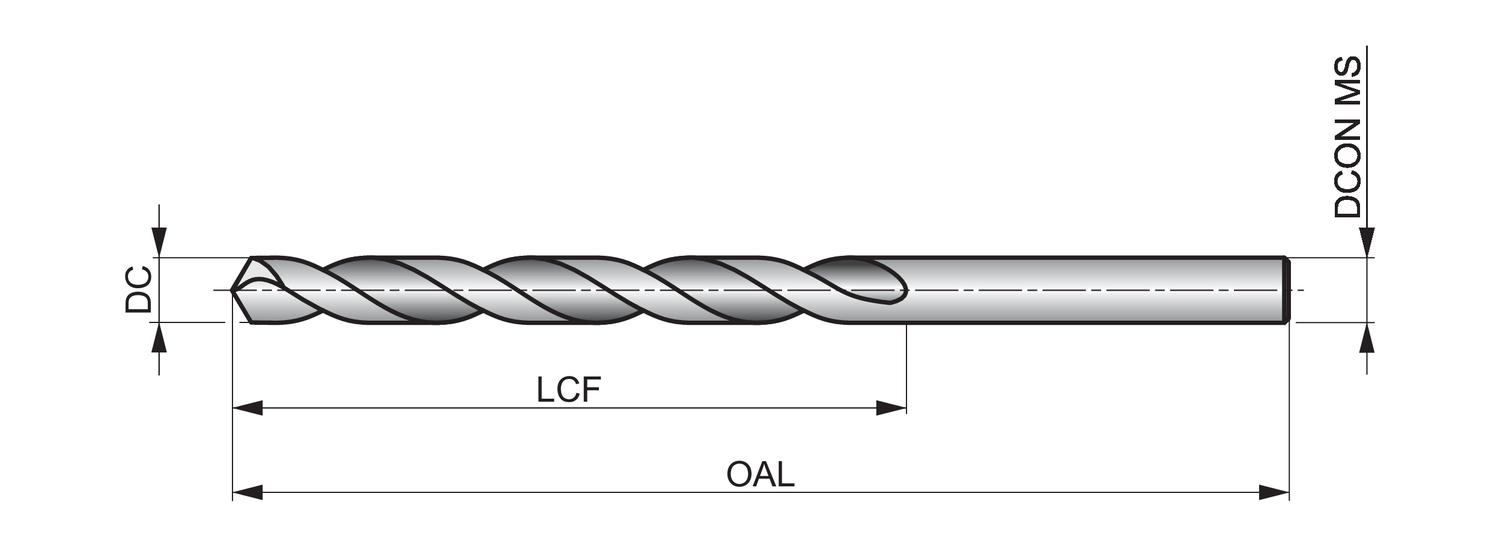

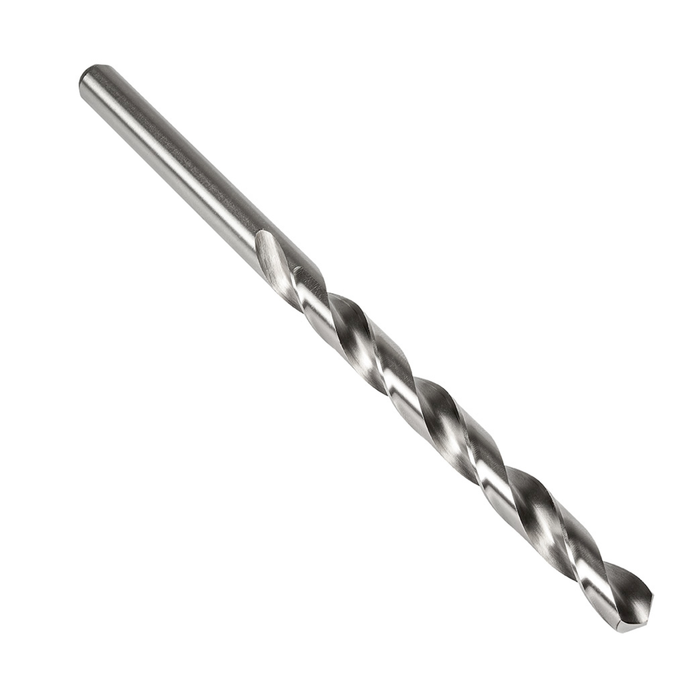

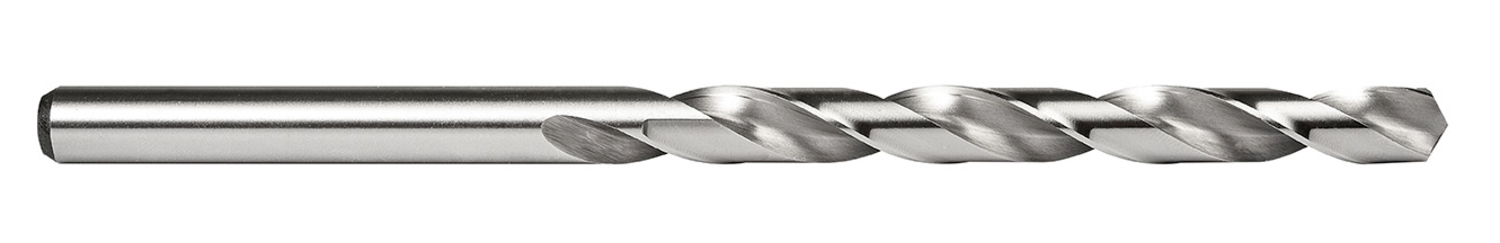

Long series drill with straight shank, diameter 0.0938" (3/32) with an overall length of 4.1/4" and flute length of 2.1/4" according to ANSI standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$6.21 - $6.21
$6.21
$6.21 - $6.21
$6.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 118

Flute Length: 2.25

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 4.25

Connetion Diameter: 0.0938

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Bright

EDP: 51006

MFG Part Number: 5999759
