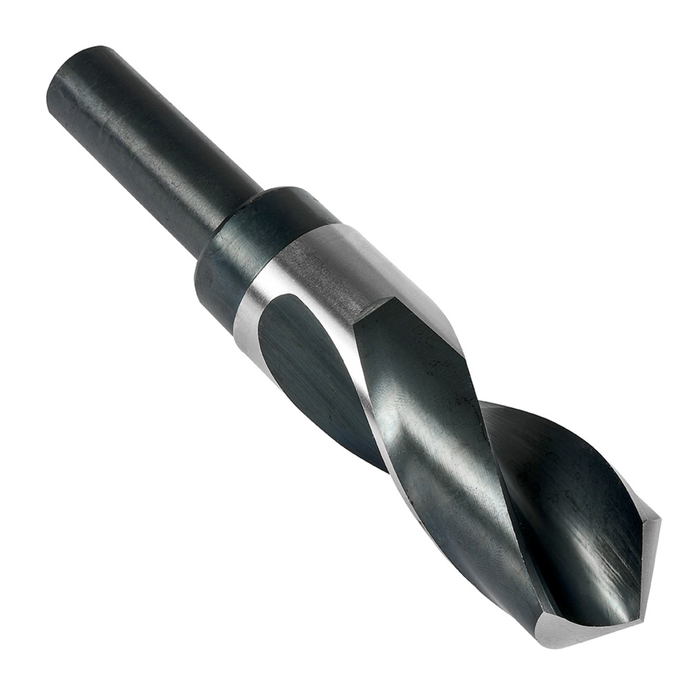

R581.1/2

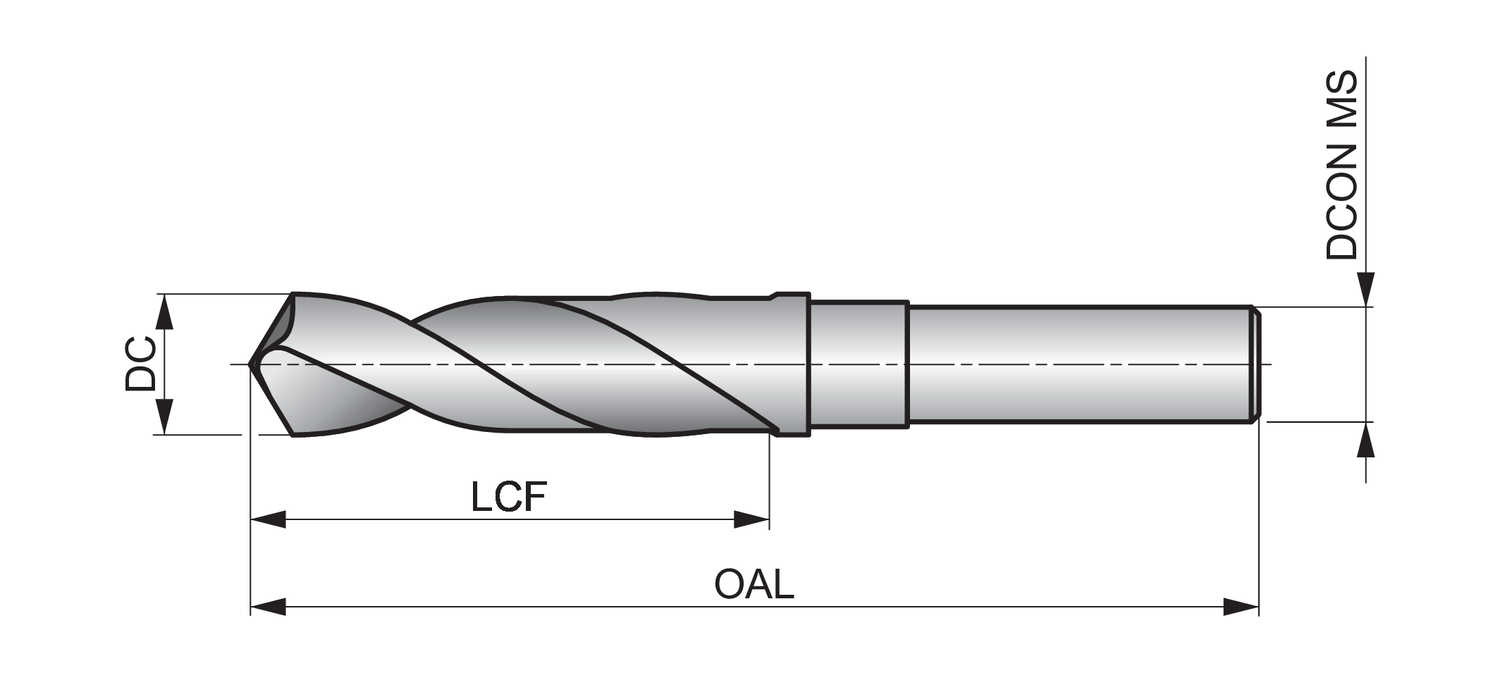

Jobber length drill with 3/4" reduced straight shank, diameter 1.5000" (1.1/2) with an overall length of 6" and flute length of 3" according to ANSI standard with 118° point angle, HSS with bright + steam tempered finish for 1.5xD drilling without pecking in steel
Inventory
Sold in packs of: 1
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Material: HSS
Cutting Diameter - in (DC): 1.5
Cutting Diameter - mm (DC): 38.1
Drill Point Angle - deg: 118
Flute Length: 3.0
Lenxth x Diameter Ratio: 4
Overall Length (OAL): 6.0
Connetion Diameter: 0.75
Tool Direction: Right
Shank: Reduced Cylindrical shank
Fractional: 1.1/2
Grade: Bright/ST
EDP: 91296
MFG Part Number: 6000054
