R5155/64

R5155/64

SKU PRE6000243
by Precision Twist Drill
Primary Use: Possible Use:

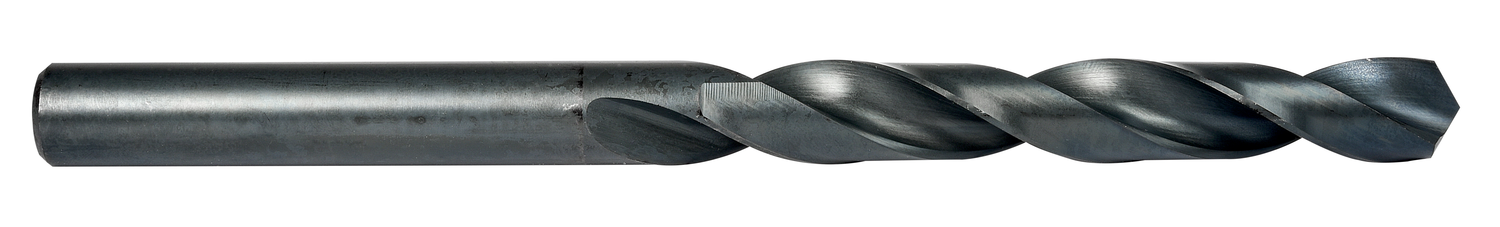

Long series drill with straight shank, diameter 0.8594" (55/64) with an overall length of 10" and flute length of 6.1/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$105.23 - $105.23
$105.23
$105.23 - $105.23
$105.23
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.8594

Cutting Diameter - mm (DC): 21.83

Drill Point Angle - deg: 118

Flute Length: 6.125

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 10.0

Connetion Diameter: 0.8594

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 55/64

Grade: Steam Tempered

EDP: 51055

MFG Part Number: 6000243
