R52N31

R52N31

SKU PRE6000267
by Precision Twist Drill
Primary Use: Possible Use:

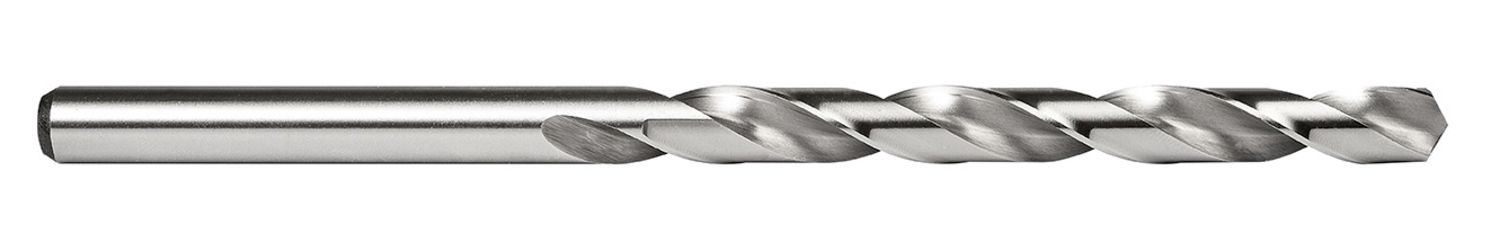

Long series drill with straight shank, diameter 0.1200" (N31) with an overall length of 5.1/8" and flute length of 2.3/4" according to ANSI standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$12.74 - $12.74
$12.74
$12.74 - $12.74
$12.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.12

Cutting Diameter - mm (DC): 3.05

Drill Point Angle - deg: 118

Flute Length: 2.75

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 5.125

Connetion Diameter: 0.12

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 52031

MFG Part Number: 6000267
