2A.22

2A.22

SKU PRE6000311
by Precision Twist Drill
Primary Use: Possible Use:

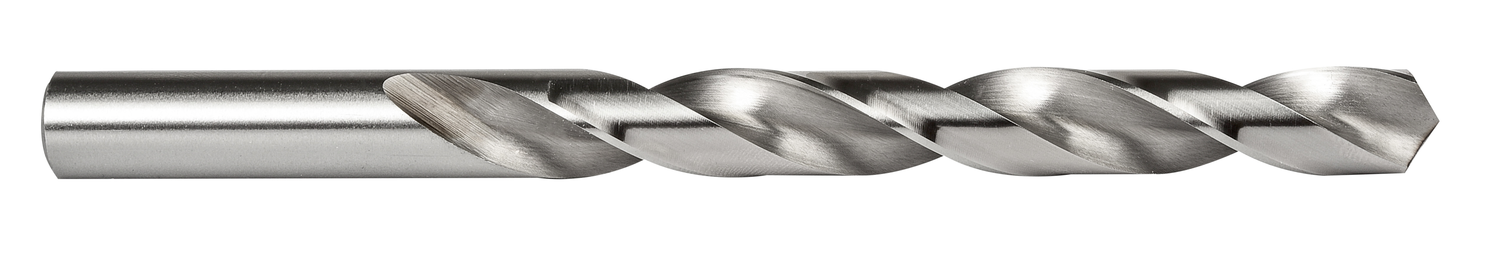

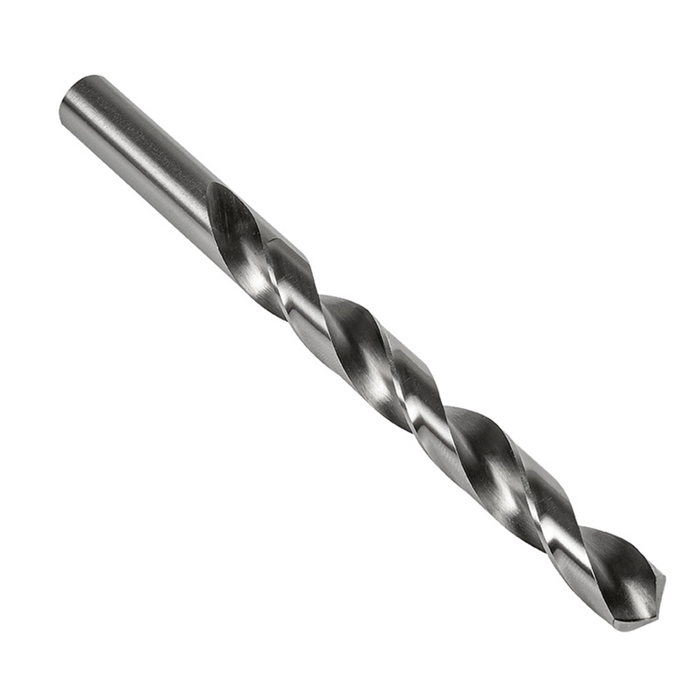

Jobber length drill with straight shank, diameter 0.22mm with an overall length of 19mm and flute length of 2.5mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$8.09 - $8.09
$8.09
$8.09 - $8.09
$8.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0087

Cutting Diameter - mm (DC): 0.22

Drill Point Angle - deg: 118

Flute Length: 0.0984

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 0.748

Connetion Diameter: 0.0087

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 16222

MFG Part Number: 6000311
