R5143/64

R5143/64

SKU PRE6000358
by Precision Twist Drill
Primary Use: Possible Use:

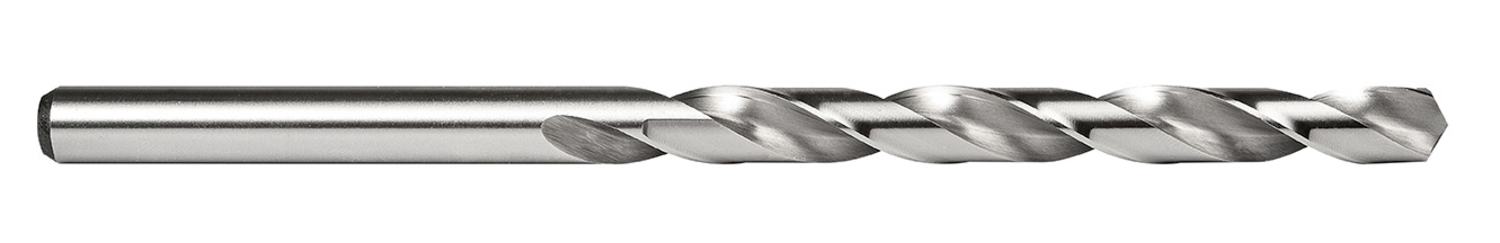

Long series drill with straight shank, diameter 0.6719" (43/64) with an overall length of 9.1/4" and flute length of 5.3/8" according to ANSI standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$69.19 - $69.19
$69.19
$69.19 - $69.19
$69.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.6719

Cutting Diameter - mm (DC): 17.07

Drill Point Angle - deg: 118

Flute Length: 5.375

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 9.25

Connetion Diameter: 0.6719

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 43/64

Grade: Bright

EDP: 51043

MFG Part Number: 6000358
