R5145/64

R5145/64

SKU PRE6000366
by Precision Twist Drill
Primary Use: Possible Use:

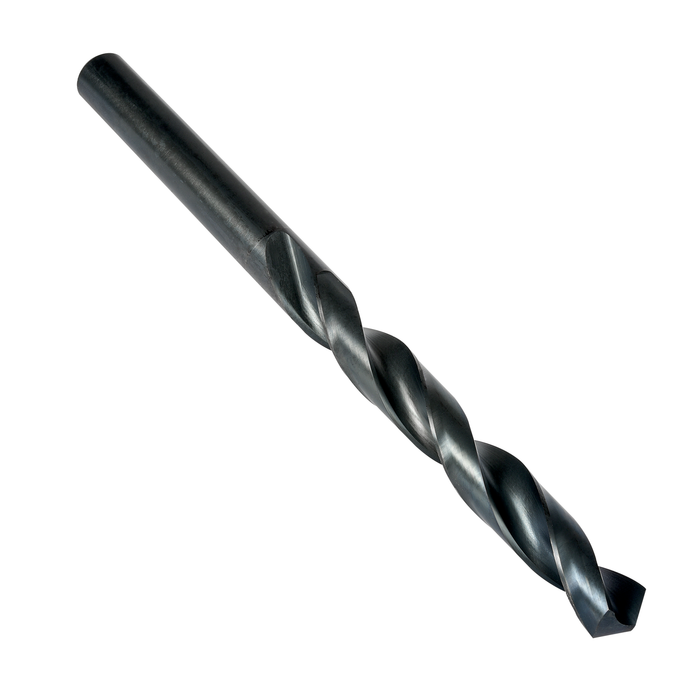

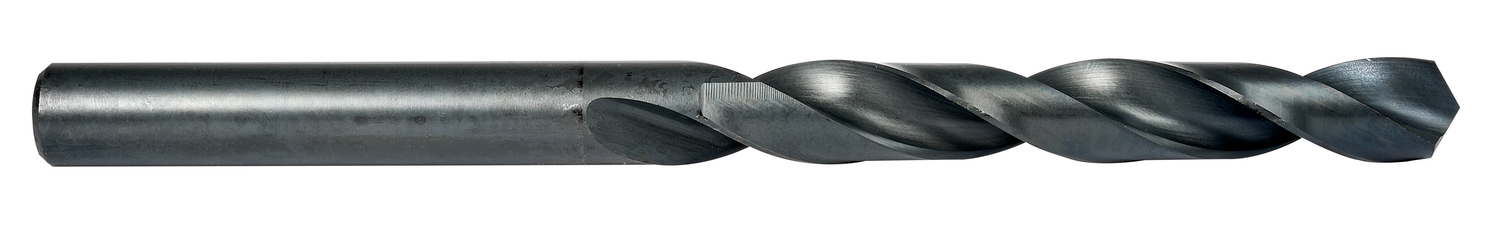

Long series drill with straight shank, diameter 0.7031" (45/64) with an overall length of 9.1/2" and flute length of 5.5/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$72.50 - $72.50
$72.50
$72.50 - $72.50
$72.50
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

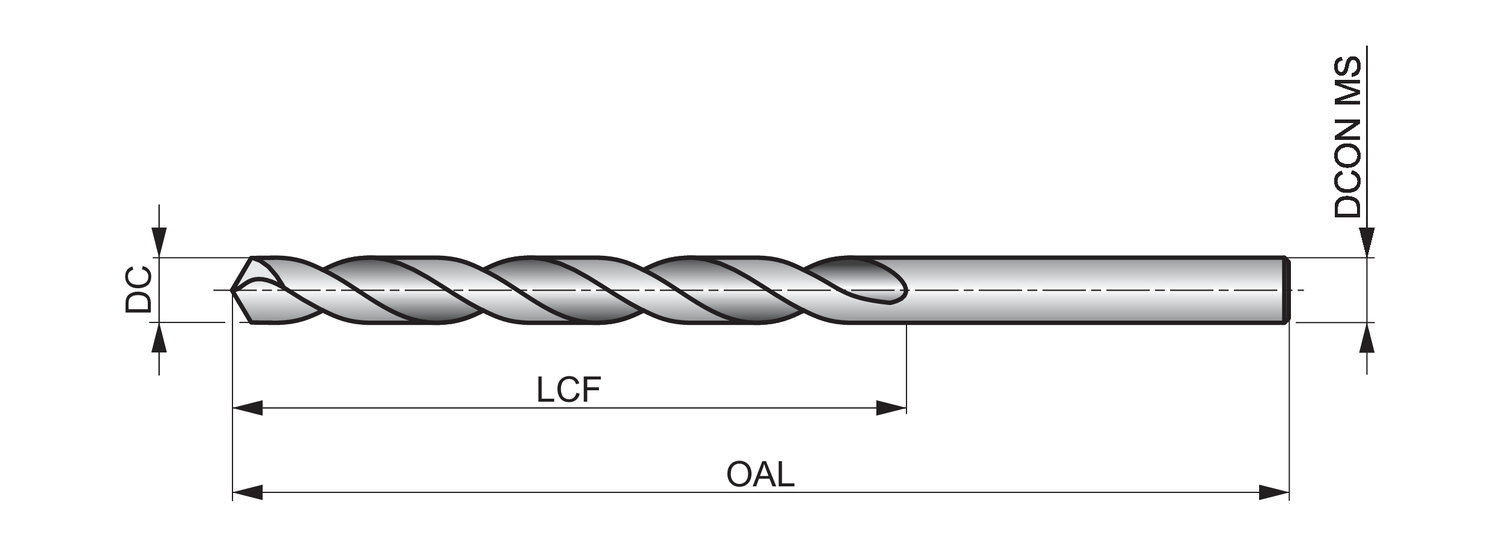

Material: HSS

Cutting Diameter - in (DC): 0.7031

Cutting Diameter - mm (DC): 17.86

Drill Point Angle - deg: 118

Flute Length: 5.625

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 9.5

Connetion Diameter: 0.7031

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 45/64

Grade: Steam Tempered

EDP: 51045

MFG Part Number: 6000366
