5ATL10.0

5ATL10.0

SKU PRE6000511
by Precision Twist Drill
Primary Use: Possible Use:

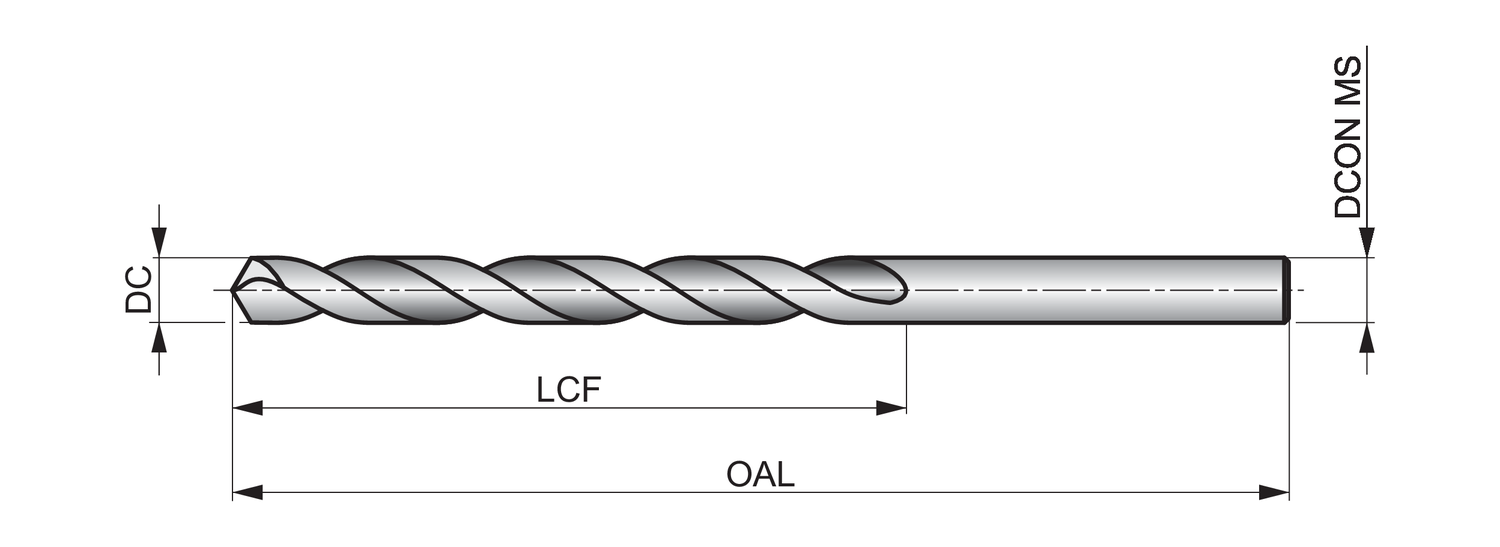

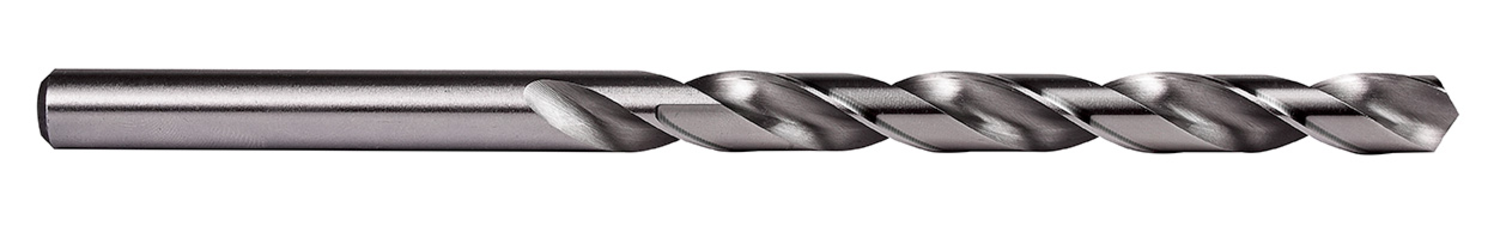

Long series drill with straight shank, diameter 10mm with an overall length of 184mm and flute length of 121mm according to DIN 340 standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$22.74 - $22.74
$22.74
$22.74 - $22.74
$22.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Drill Point Angle - deg: 118

Flute Length: 4.7638

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 7.2441

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 57100

MFG Part Number: 6000511
