5ATL2.3

5ATL2.3

SKU PRE6000822
by Precision Twist Drill
Primary Use: Possible Use:

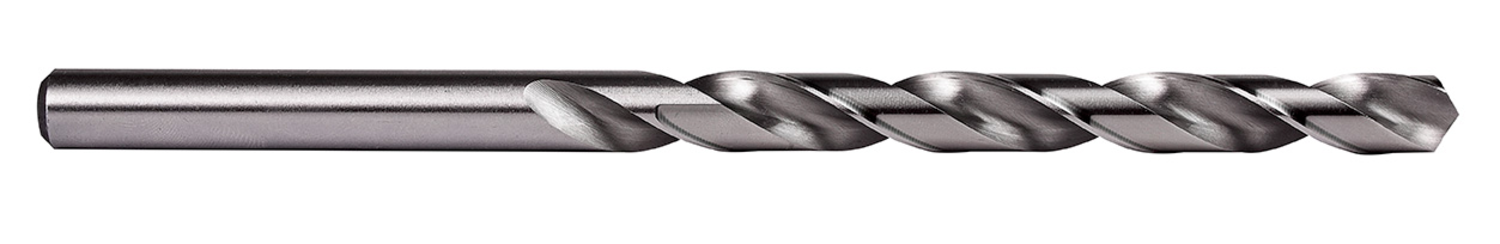

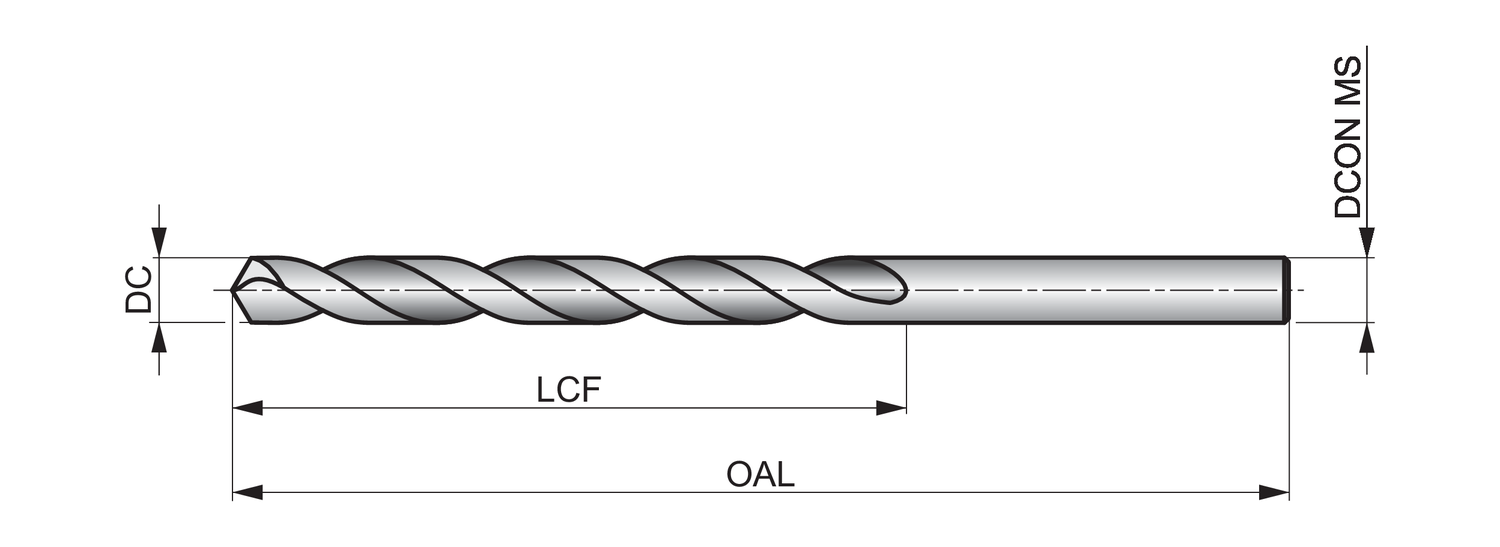

Long series drill with straight shank, diameter 2.3mm with an overall length of 90mm and flute length of 59mm according to DIN 340 standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$7.97 - $7.97
$7.97
$7.97 - $7.97
$7.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0906

Cutting Diameter - mm (DC): 2.3

Drill Point Angle - deg: 118

Flute Length: 2.3228

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 3.5433

Connetion Diameter: 0.0906

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 56230

MFG Part Number: 6000822
