5ATL20.0

5ATL20.0

SKU PRE6000830
by Precision Twist Drill
Primary Use: Possible Use:

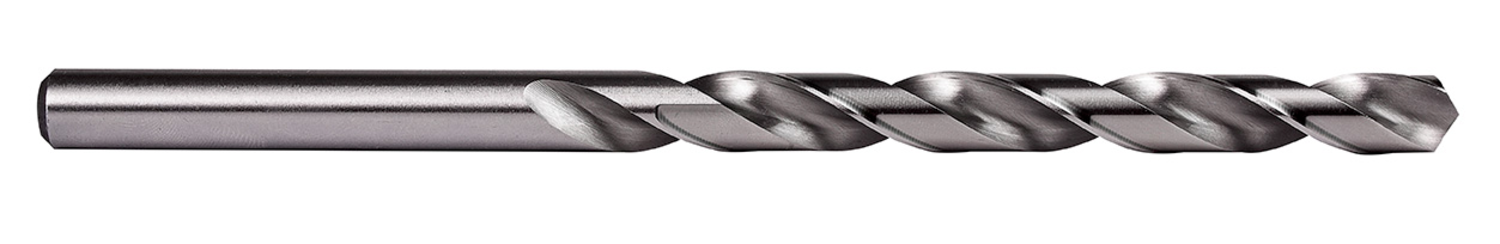

Long series drill with straight shank, diameter 20mm with an overall length of 254mm and flute length of 166mm according to DIN 340 standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$105.64 - $105.64
$105.64
$105.64 - $105.64
$105.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Drill Point Angle - deg: 118

Flute Length: 6.5354

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 10.0

Connetion Diameter: 0.7874

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 57200

MFG Part Number: 6000830
