209CO5/8

209CO5/8

SKU PRE6000847
by Precision Twist Drill
Primary Use: Possible Use:

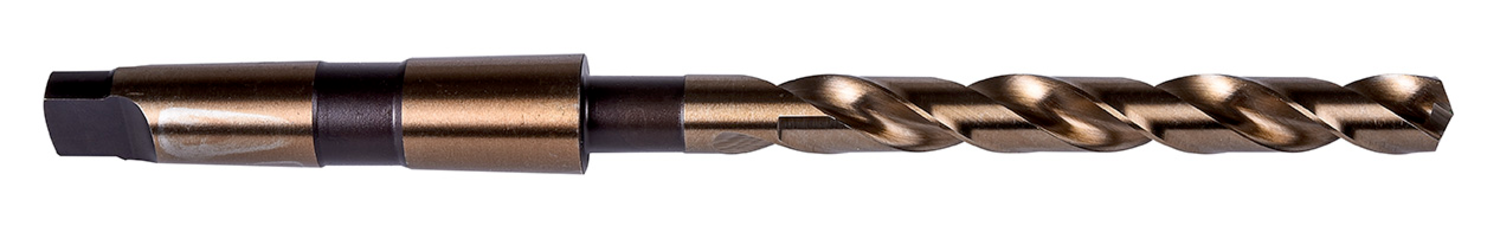

Jobber length drill with taper shank, diameter 0.6250" (5/8) with an overall length of 8.3/4" and flute length of 4.7/8" according to ANSI standard with 135° thinned conical point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$85.24 - $85.24
$85.24
$85.24 - $85.24
$85.24
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.625

Cutting Diameter - mm (DC): 15.88

Drill Point Angle - deg: 135

Flute Length: 4.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 8.75

Tool Direction: Right

Shank: Morse Taper Shank

Fractional: 5/8

Grade: Bronze

EDP: 21340

MFG Part Number: 6000847
