5ATL3.1

5ATL3.1

SKU PRE6000917
by Precision Twist Drill
Primary Use: Possible Use:

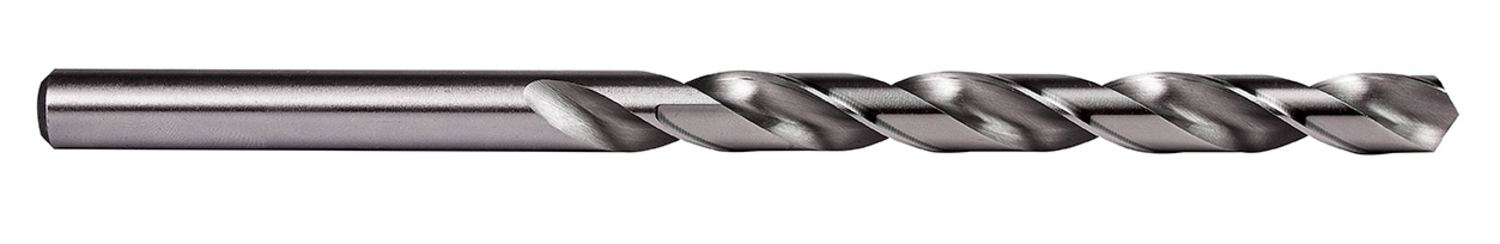

Long series drill with straight shank, diameter 3.1mm with an overall length of 106mm and flute length of 69mm according to DIN 340 standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$10.30 - $10.30
$10.30
$10.30 - $10.30
$10.30
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

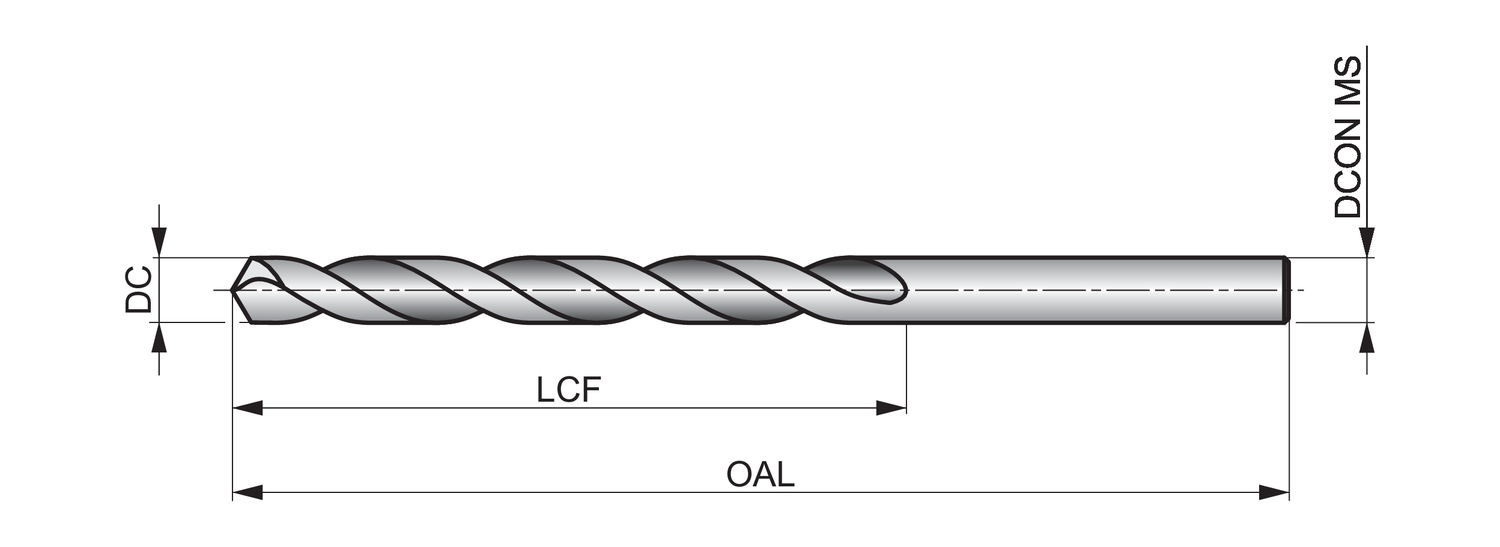

Material: HSS

Cutting Diameter - in (DC): 0.122

Cutting Diameter - mm (DC): 3.1

Drill Point Angle - deg: 118

Flute Length: 2.7165

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 4.1732

Connetion Diameter: 0.122

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 56310

MFG Part Number: 6000917
