5ATS17.5
SKU PRE6001020
Primary Use:
Possible Use:

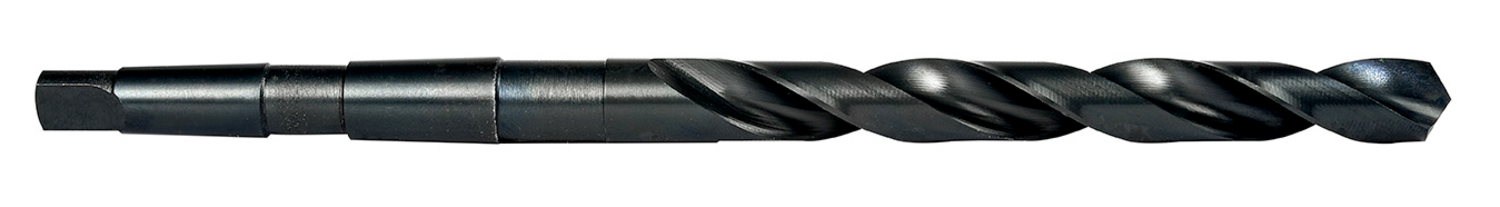

Jobber length drill with taper shank, diameter 17.5mm with an overall length of 228mm and flute length of 130mm according to DIN 345 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$76.61
-
Original price
$76.61
Original price
$76.61
$76.61
-
$76.61
Current price
$76.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

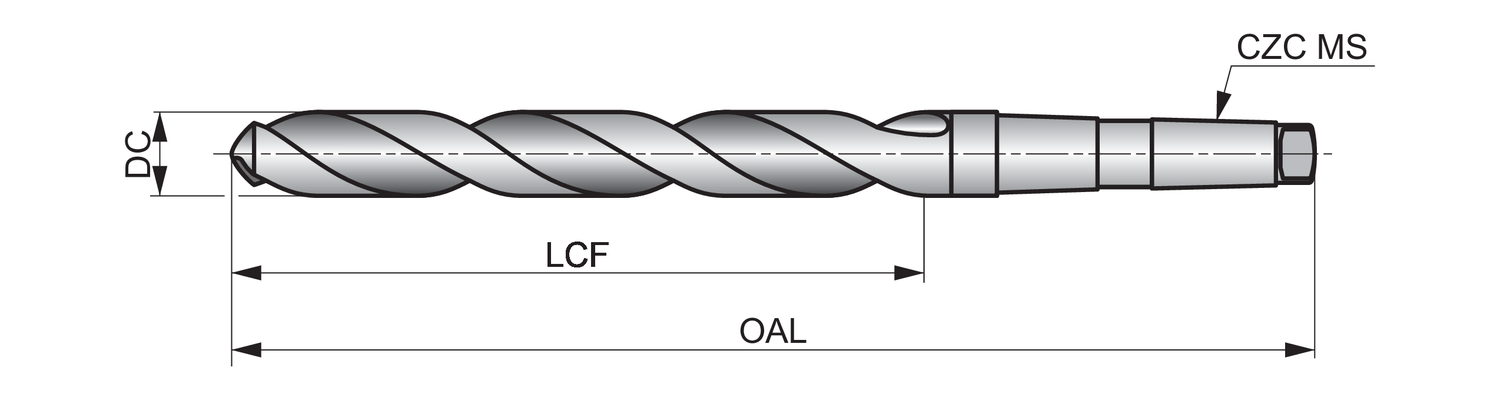

Material: HSS
Cutting Diameter - in (DC): 0.689
Cutting Diameter - mm (DC): 17.5
Drill Point Angle - deg: 118
Flute Length: 5.1181
Lenxth x Diameter Ratio: 4
Overall Length (OAL): 8.9764
Tool Direction: Right
Shank: Morse Taper Shank
Grade: Steam Tempered
EDP: 26175
MFG Part Number: 6001020
