5ATS19.0
SKU PRE6001034
Primary Use:
Possible Use:

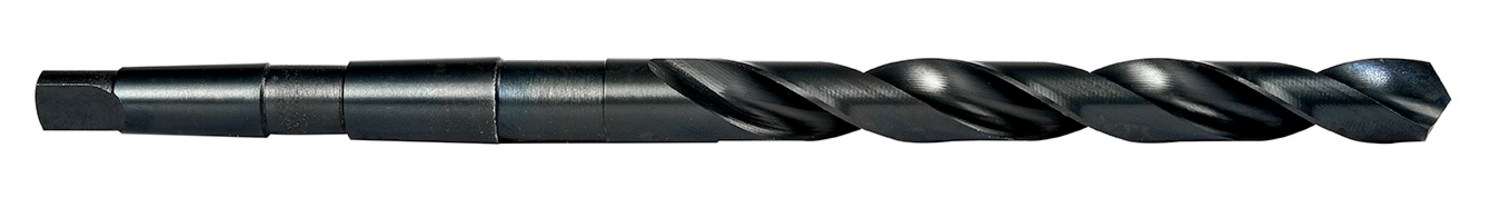

Jobber length drill with taper shank, diameter 19mm with an overall length of 233mm and flute length of 135mm according to DIN 345 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$86.36
-
Original price
$86.36
Original price
$86.36
$86.36
-
$86.36
Current price
$86.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

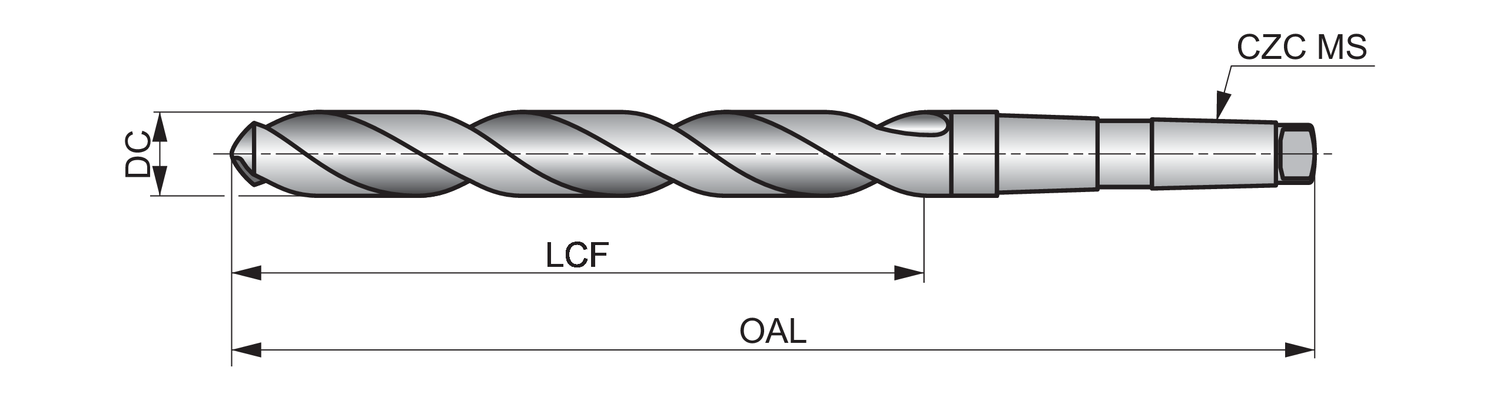

Material: HSS
Cutting Diameter - in (DC): 0.748
Cutting Diameter - mm (DC): 19.0
Drill Point Angle - deg: 118
Flute Length: 5.315
Lenxth x Diameter Ratio: 4
Overall Length (OAL): 9.1732
Tool Direction: Right
Shank: Morse Taper Shank
Grade: Steam Tempered
EDP: 26190
MFG Part Number: 6001034
