502-6R

502-6R

SKU PRE6001322
by Precision Twist Drill
Primary Use:

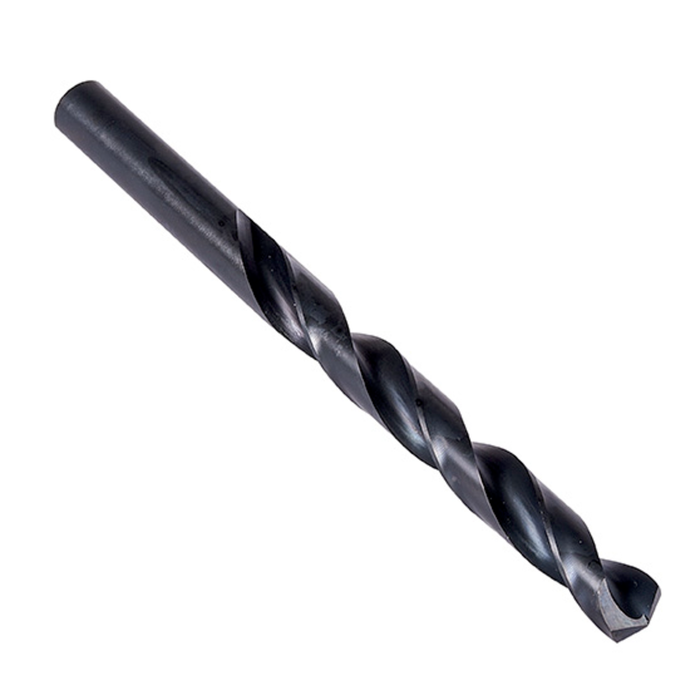

Aircraft extension-length drill with straight shank, diameter 0.3390" (R) with an overall length of 6" and flute length of 3.7/16" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$33.26 - $33.26
$33.26
$33.26 - $33.26
$33.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

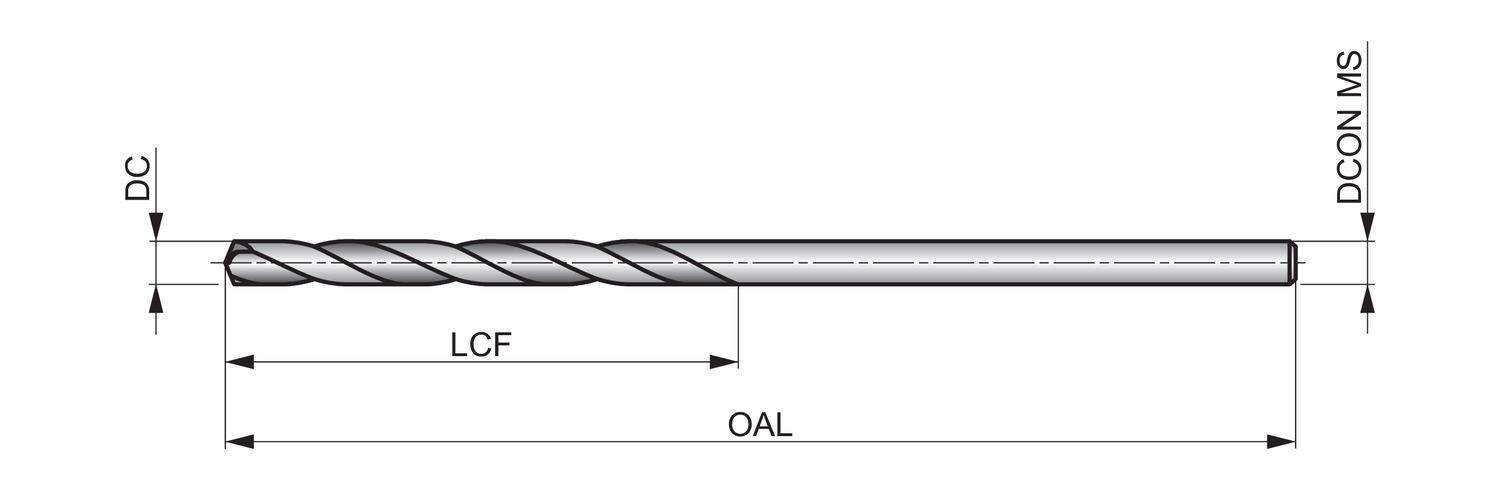

Cutting Diameter - in (DC): 0.339

Cutting Diameter - mm (DC): 8.61

Drill Point Angle - deg: 135

Flute Length: 3.4375

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.0

Connetion Diameter: 0.339

Tool Direction: Right

Shank: Cylindrical shank

Letter: R

Grade: Steam Tempered

EDP: 58218

MFG Part Number: 6001322
