500-1225/64

Name: 500-1225/64
Brand: Precision Twist Drill
SKU: PRE6001359
Price: 44.24 CAD
Availability: InStock

SKU PRE6001359

by Precision Twist Drill

Primary Use:

Aircraft extension-length drill with straight shank, diameter 0.3906" (25/64) with an overall length of 12" and flute length of 3.3/4" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel, stainless steel and cast iron

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here

$44.24 - $44.24

$44.24

$44.24 - $44.24

$44.24

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

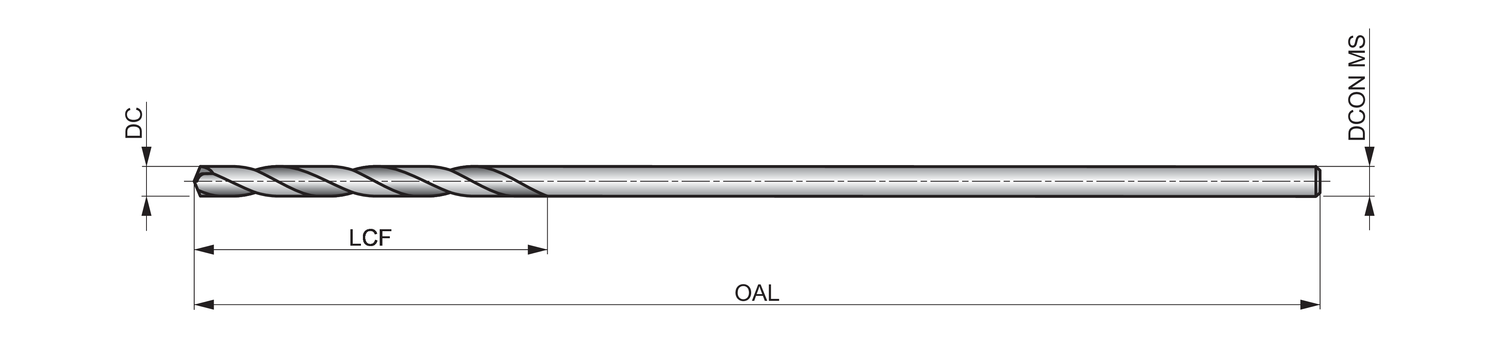

Material: HSS

Cutting Diameter - in (DC): 0.3906

Cutting Diameter - mm (DC): 9.92

Drill Point Angle - deg: 135

Flute Length: 3.75

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 12.0

Connetion Diameter: 0.3906

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 25/64

Grade: Steam Tempered

EDP: 59025

MFG Part Number: 6001359
