500-1229/64

500-1229/64

SKU PRE6001369
by Precision Twist Drill
Primary Use:

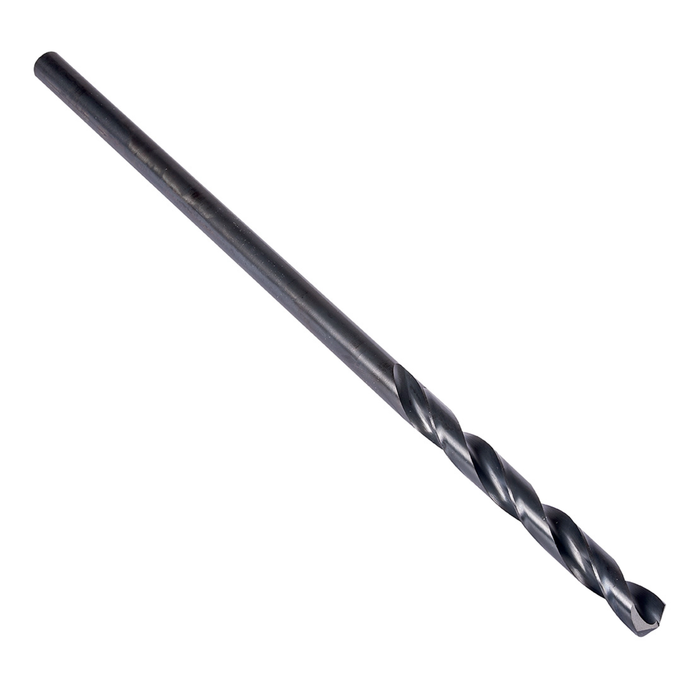

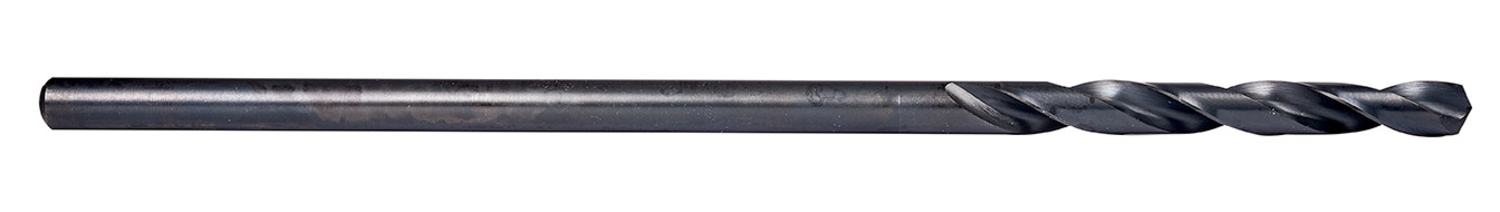

Aircraft extension-length drill with straight shank, diameter 0.4531" (29/64) with an overall length of 12" and flute length of 4.3/16" according to NAS907 Type B standard with 135° heavy duty split point, HSS with steam tempered finish for 4xD drilling without pecking in steel, stainless steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$53.14 - $53.14
$53.14
$53.14 - $53.14
$53.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

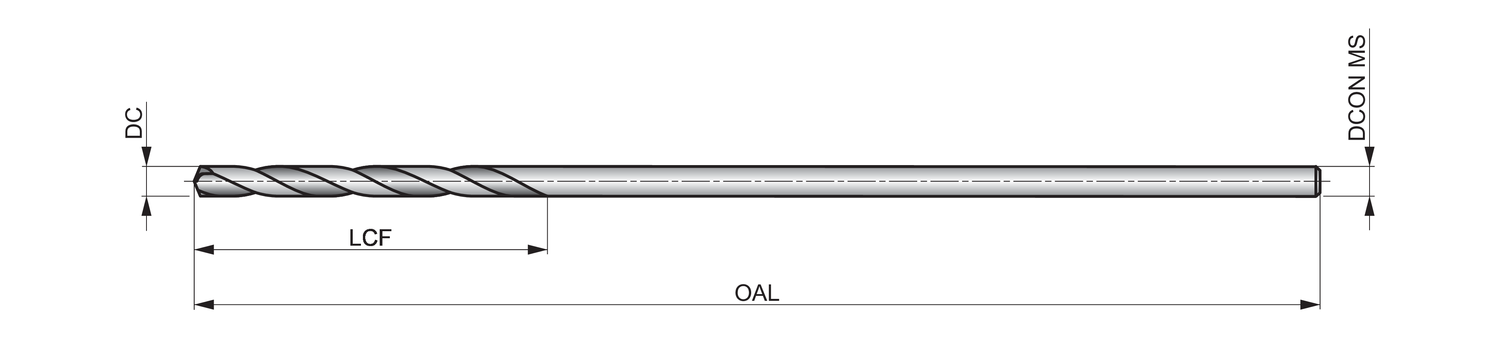

Material: HSS

Cutting Diameter - in (DC): 0.4531

Cutting Diameter - mm (DC): 11.51

Drill Point Angle - deg: 135

Flute Length: 4.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 12.0

Connetion Diameter: 0.4531

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 29/64

Grade: Steam Tempered

EDP: 59029

MFG Part Number: 6001369
