E000TINM6

E000TINM6

SKU DOR6196638
by Dormer Pramet
Primary Use: Possible Use:

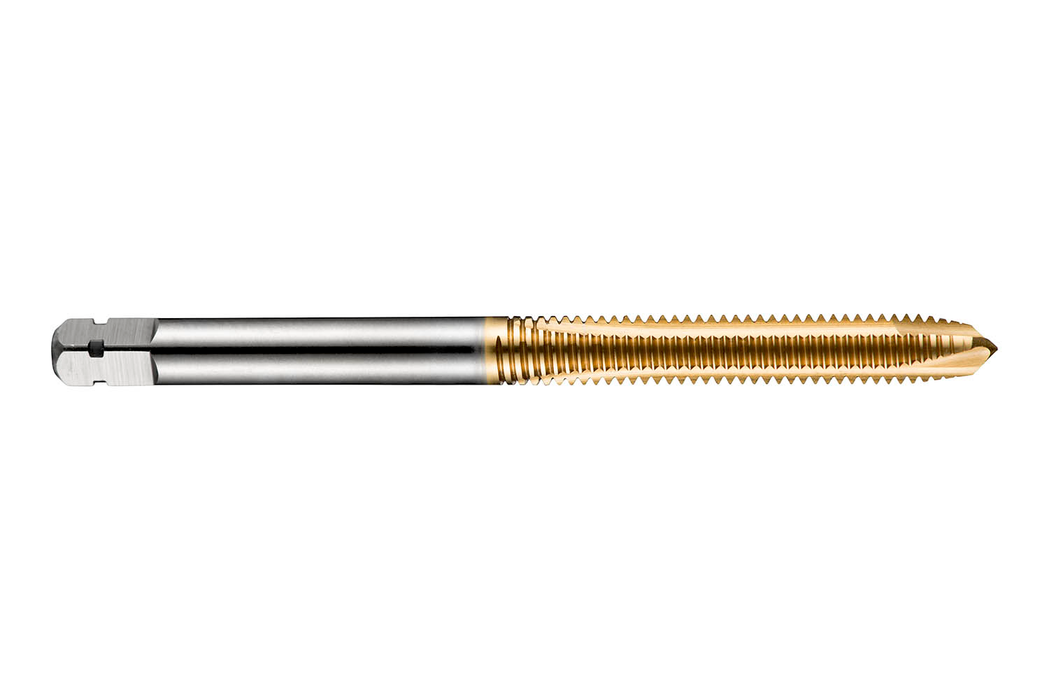

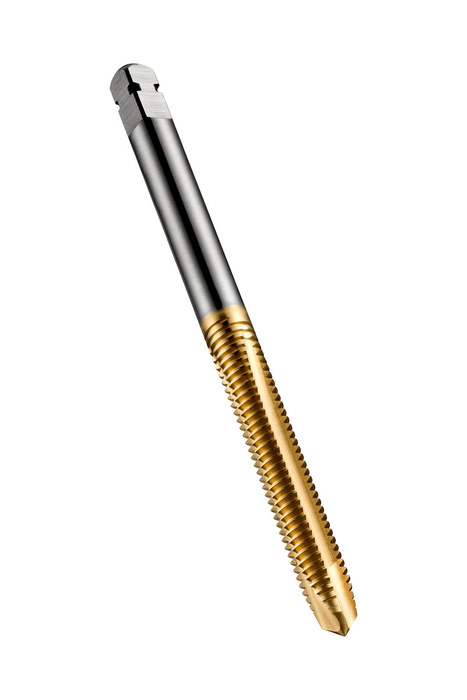

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$24.33 - $24.33
$24.33
$24.33 - $24.33
$24.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.5984

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: 6

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.0236

Grade: TiN

EDP: 46196638

EAN: 7320760661963

MFG Part Number: 6196638
