E002TINM3

E002TINM3

SKU DOR6196694
by Dormer Pramet
Primary Use:

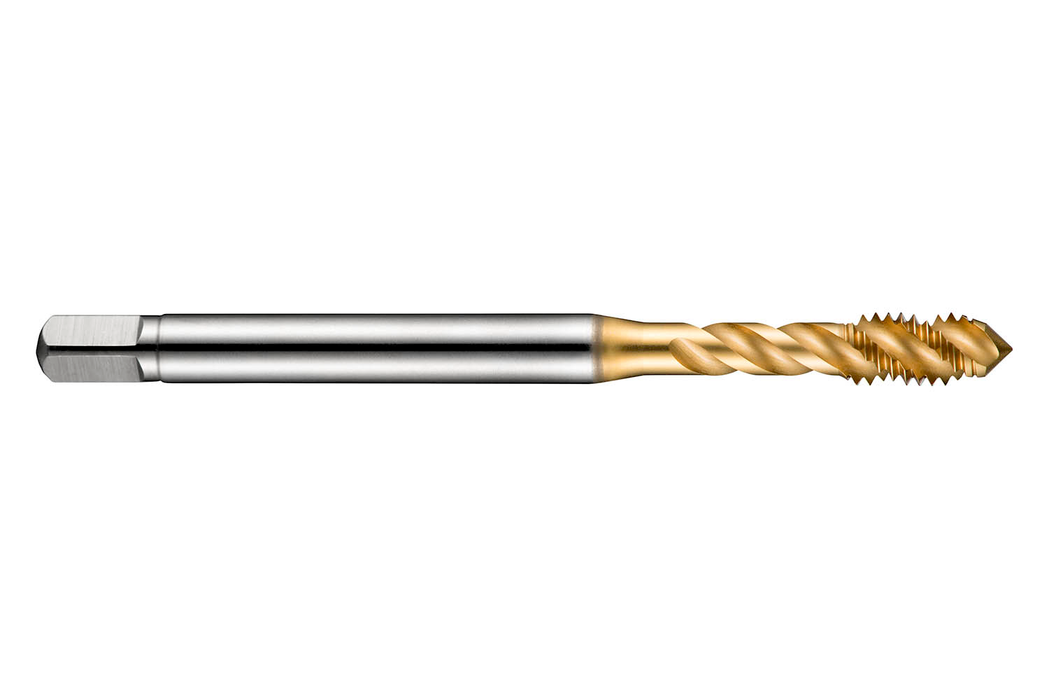

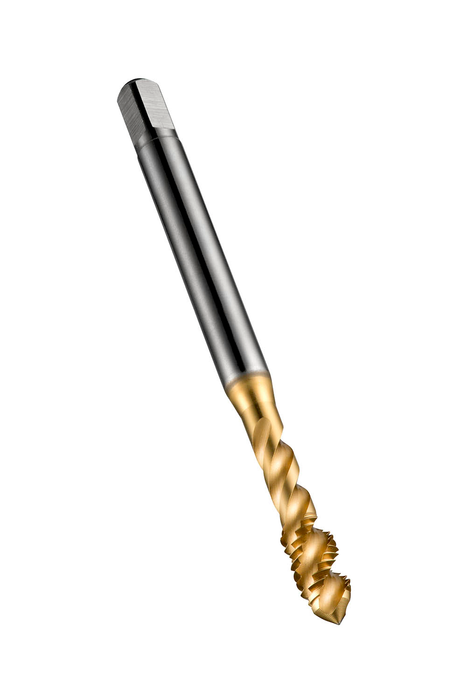

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.71 - $32.71
$32.71
$32.71 - $32.71
$32.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

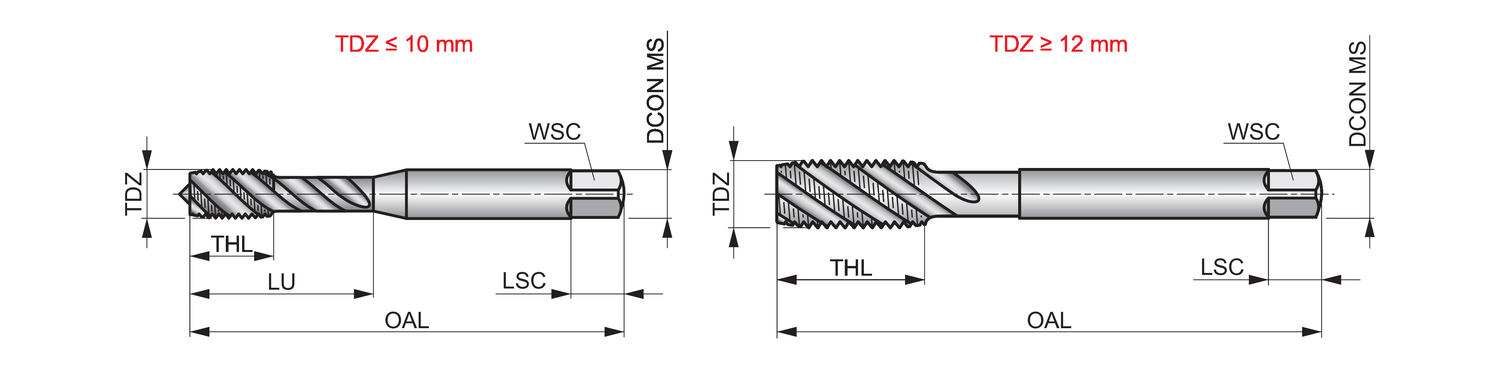

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.8898

Connetion Diameter: 0.124

Tool Direction: Right

Diameter Size: 3

Pitch - mm: 0.5

Pitch - in: 0.0197

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.4921

Grade: TiN

EDP: 46196694

EAN: 7320760662021

MFG Part Number: 6196694
