EP00TINM3

EP00TINM3

SKU DOR6196703
by Dormer Pramet
Primary Use: Possible Use:

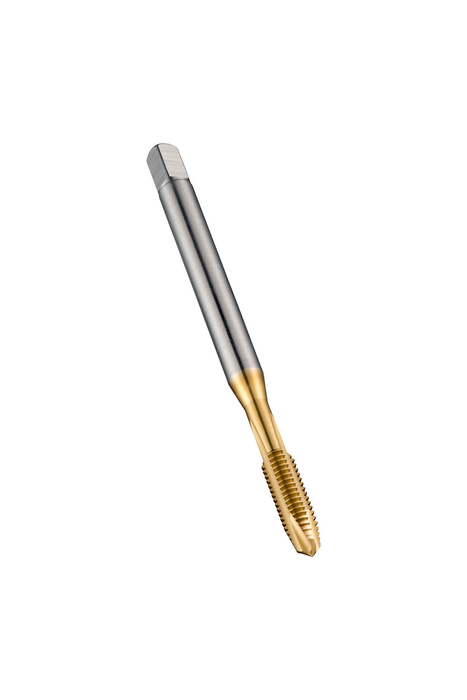

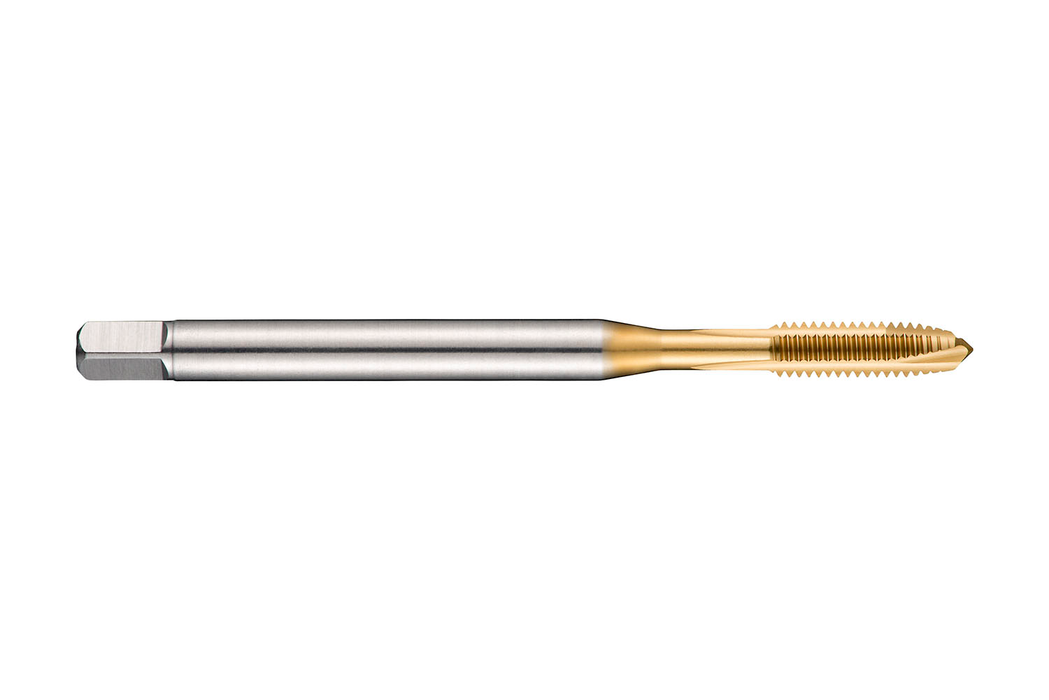

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.09 - $41.09
$41.09
$41.09 - $41.09
$41.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.2047

Connetion Diameter: 0.1378

Tool Direction: Right

Diameter Size: 3

Pitch - mm: 0.5

Pitch - in: 0.0197

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.7087

Grade: TiN

EDP: 46196703

EAN: 7320760662113

MFG Part Number: 6196703
