EP10TINM18X1.5

EP10TINM18X1.5

SKU DOR6196726
by Dormer Pramet
Primary Use: Possible Use:

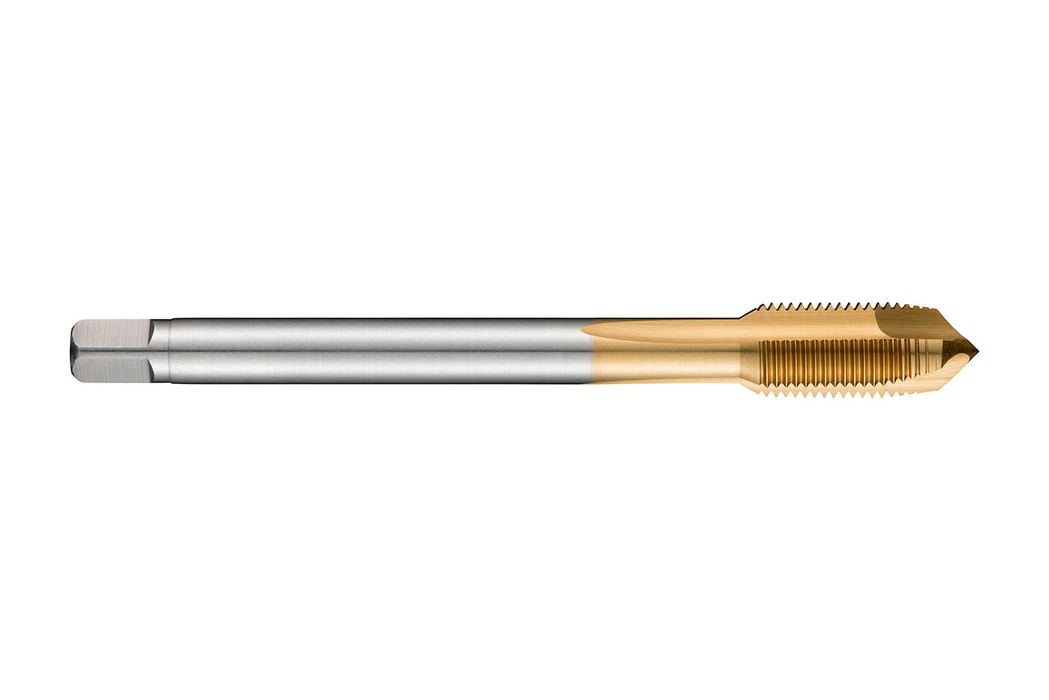

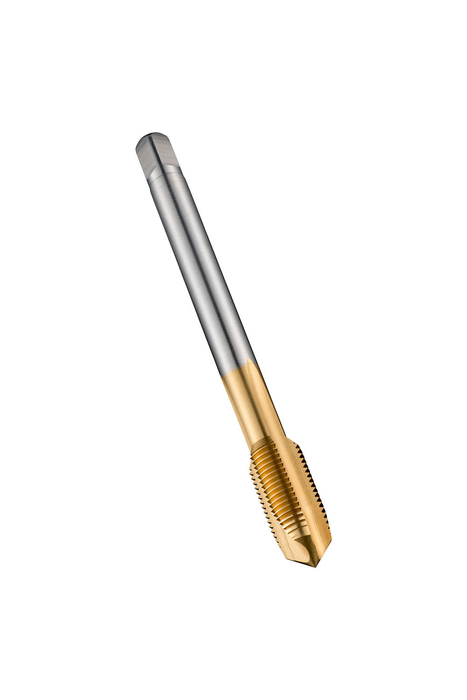

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$173.64 - $173.64
$173.64
$173.64 - $173.64
$173.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

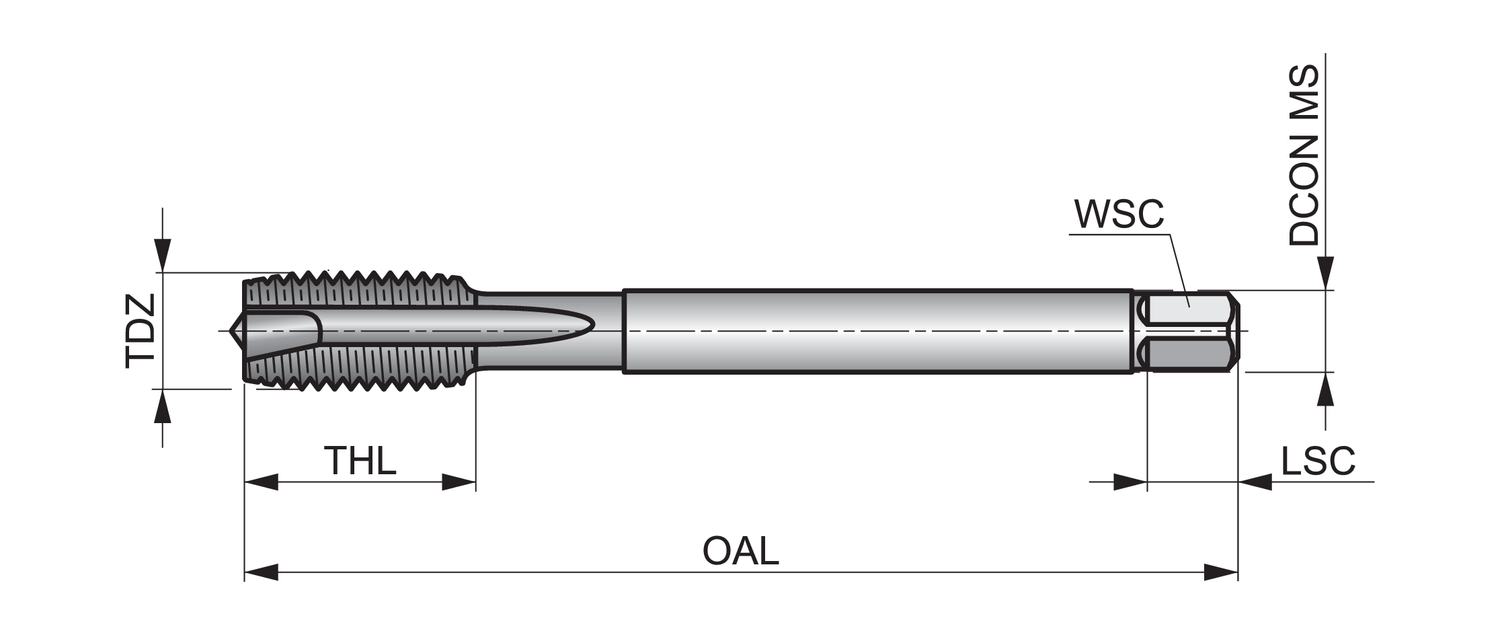

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 4.3307

Connetion Diameter: 0.5512

Tool Direction: Right

Diameter Size: 18

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: TiN

EDP: 46196726

EAN: 7320760662342

MFG Part Number: 6196726
