E300M10X.75

E300M10X.75

SKU DOR6290611
by Dormer Pramet
Primary Use:

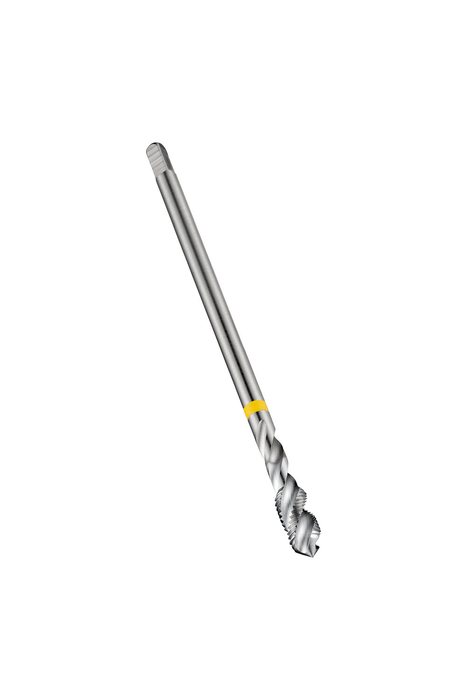

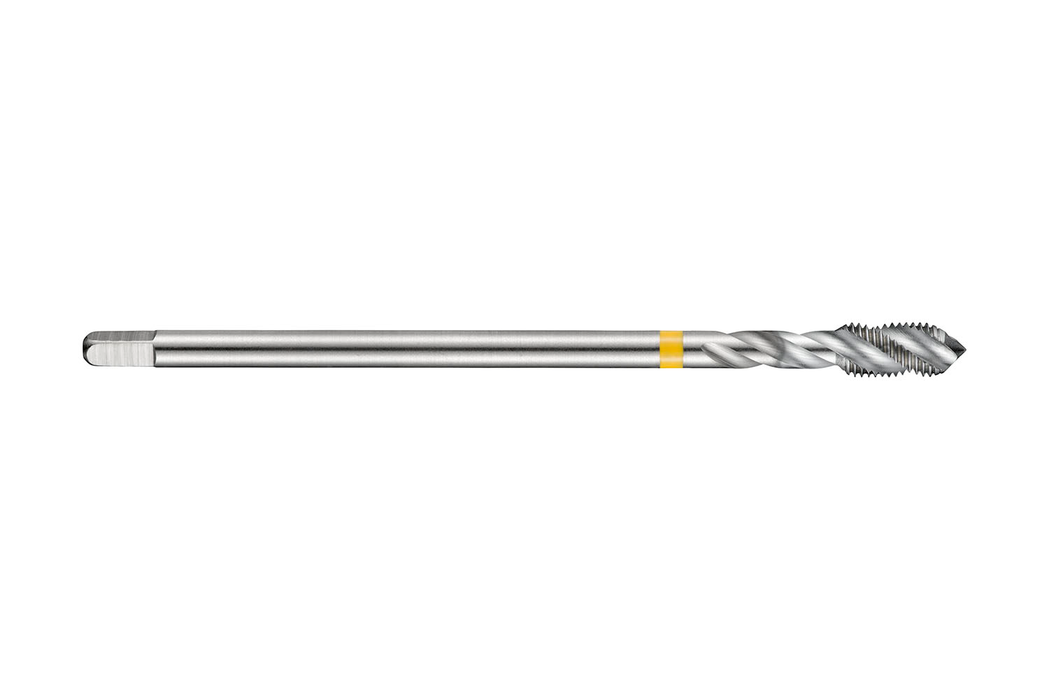

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$70.40 - $70.40
$70.40
$70.40 - $70.40
$70.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

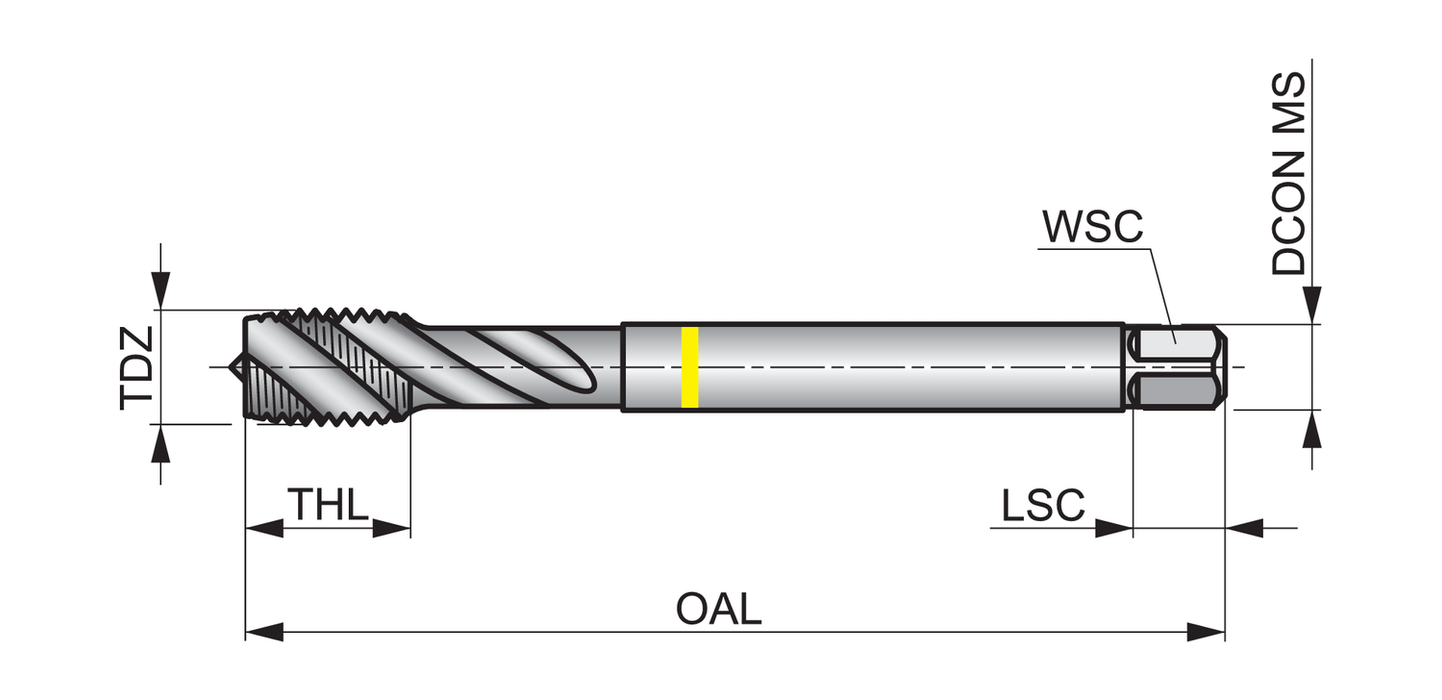

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.5433

Connetion Diameter: 0.2756

Tool Direction: Right

Diameter Size: 10

Pitch - mm: 0.75

Pitch - in: 0.0295

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Flash Crome

EDP: 46290611

EAN: 7320760663318

MFG Part Number: 6290611
