E300M30X2.0

E300M30X2.0

SKU DOR6290629
by Dormer Pramet
Primary Use:

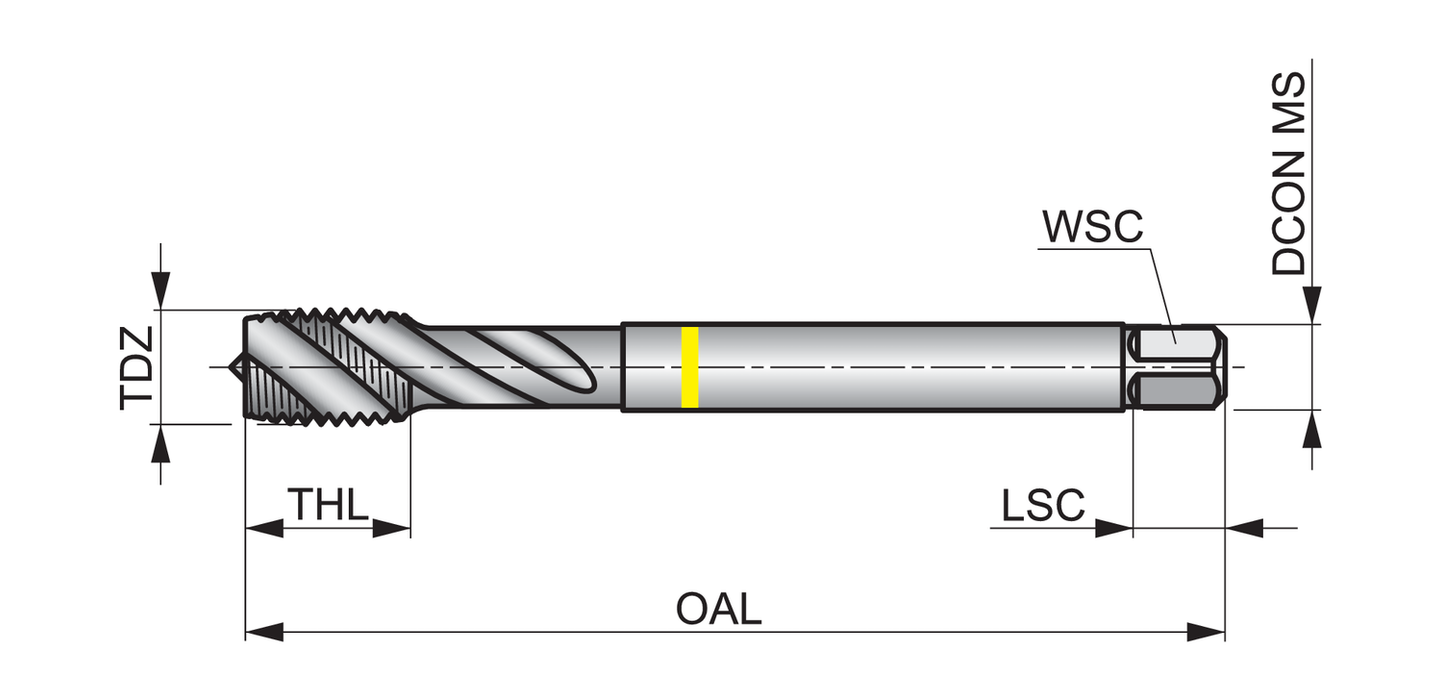

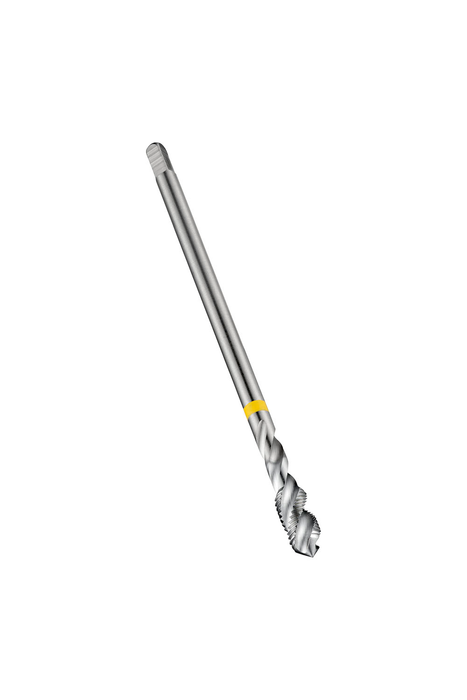

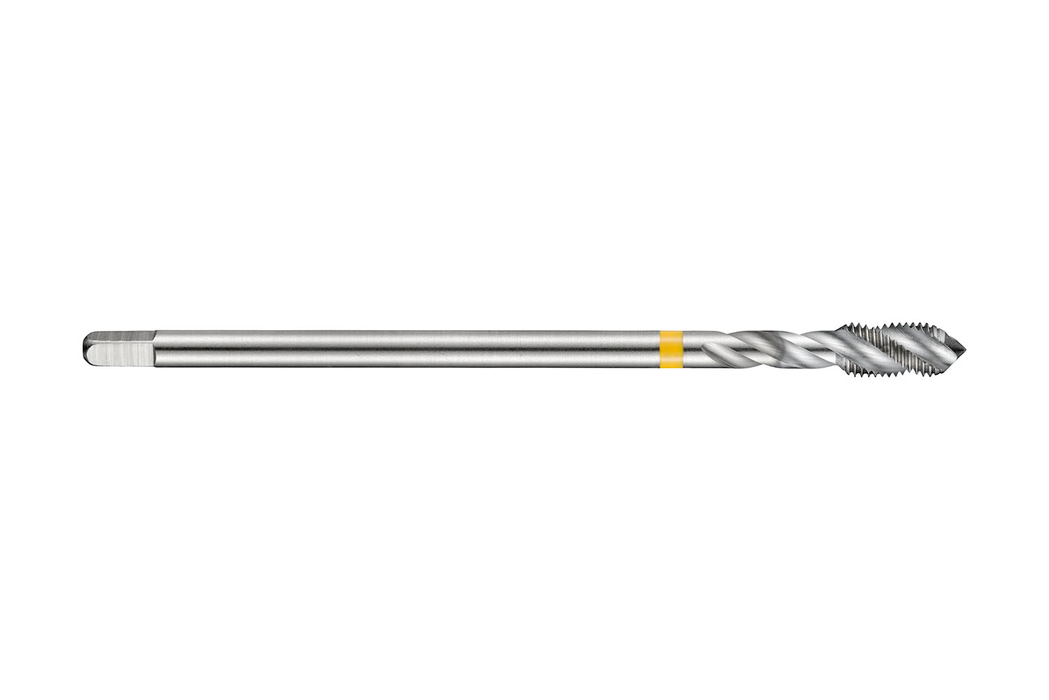

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$333.71 - $333.71
$333.71
$333.71 - $333.71
$333.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 5.9055

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 30

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Flash Crome

EDP: 46290629

EAN: 7320760663493

MFG Part Number: 6290629
