E241M4

E241M4

SKU DOR6305844
by Dormer Pramet
Primary Use: Possible Use:

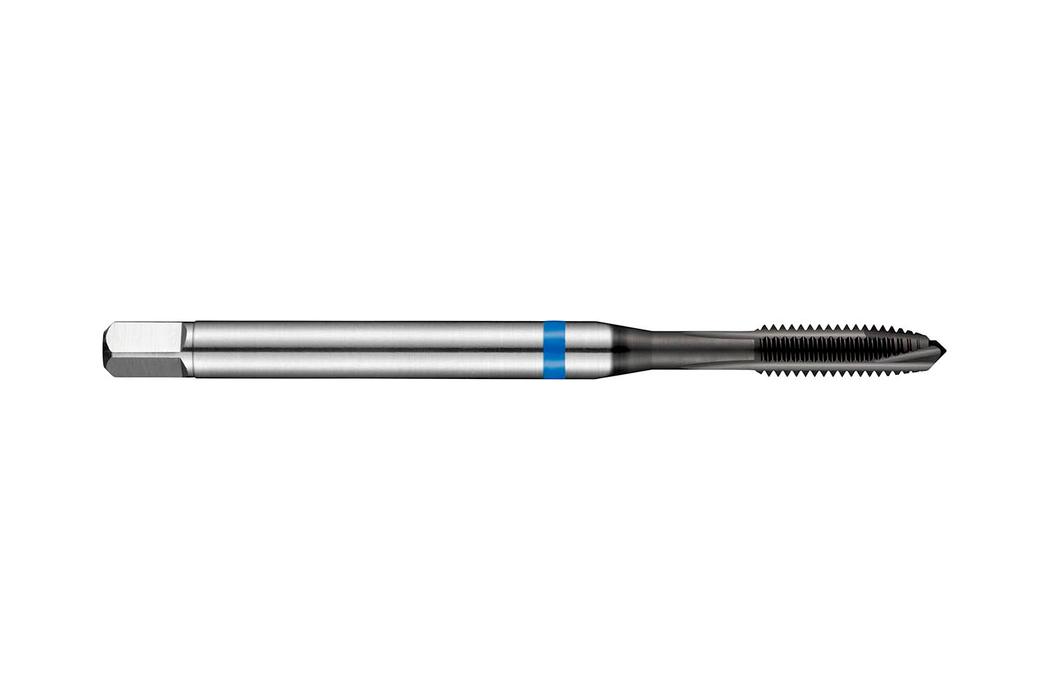

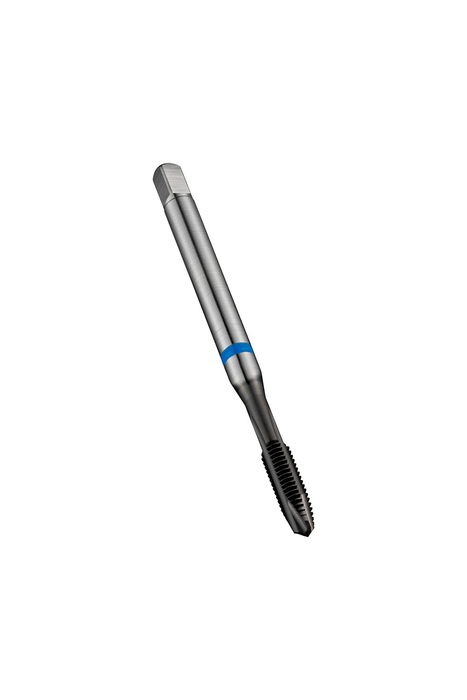

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$48.07 - $48.07
$48.07
$48.07 - $48.07
$48.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

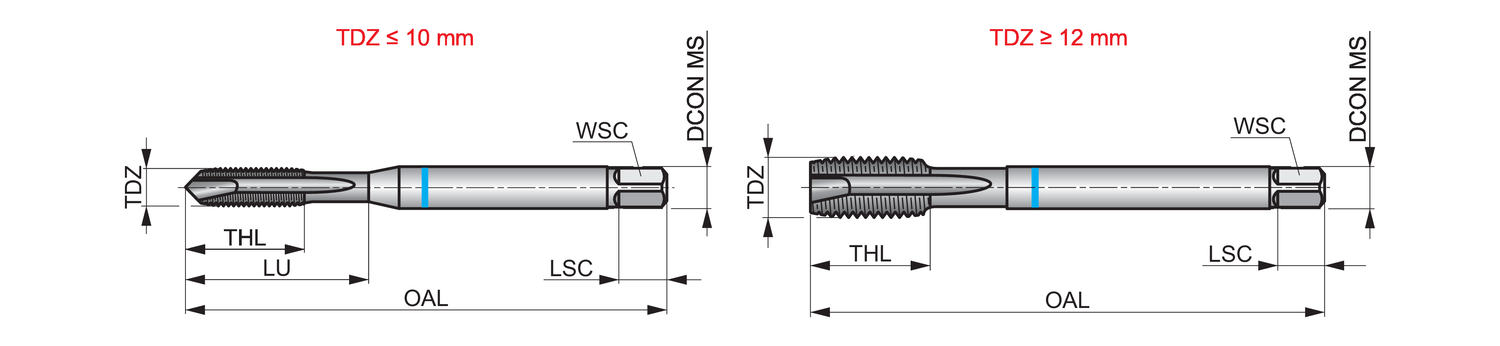

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.4803

Connetion Diameter: 0.1772

Tool Direction: Right

Diameter Size: 4

Pitch - mm: 0.7

Pitch - in: 0.0276

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8268

Grade: SUPER-B

EDP: 46305844

EAN: 7320760664490

MFG Part Number: 6305844
