A10815/64

A10815/64

SKU DOR6305902
by Dormer Pramet
Primary Use: Possible Use:

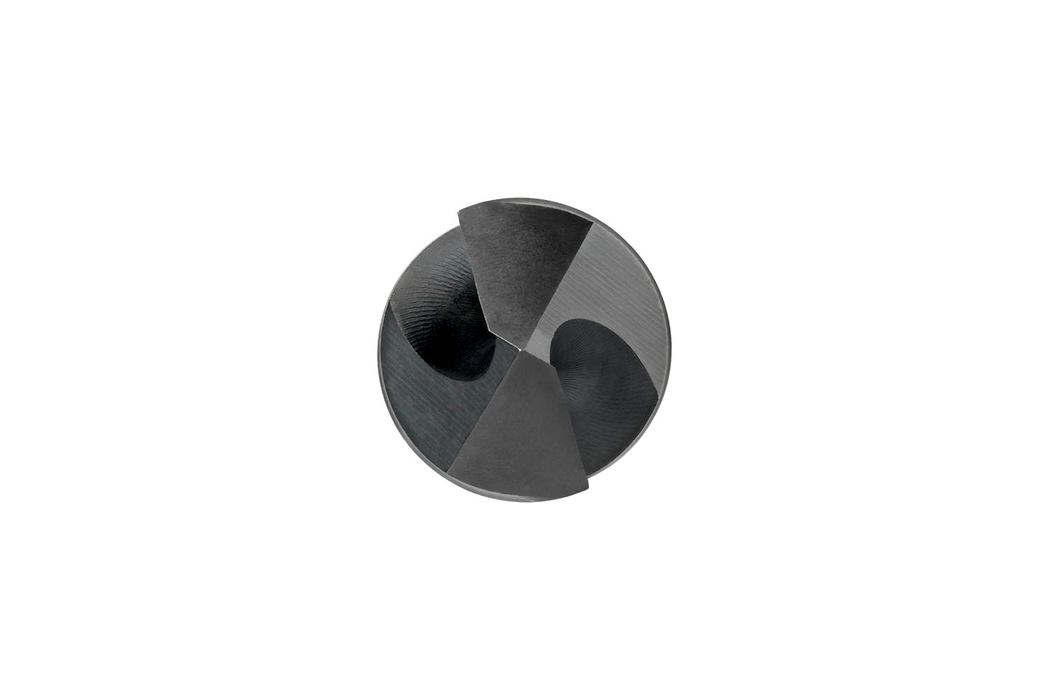

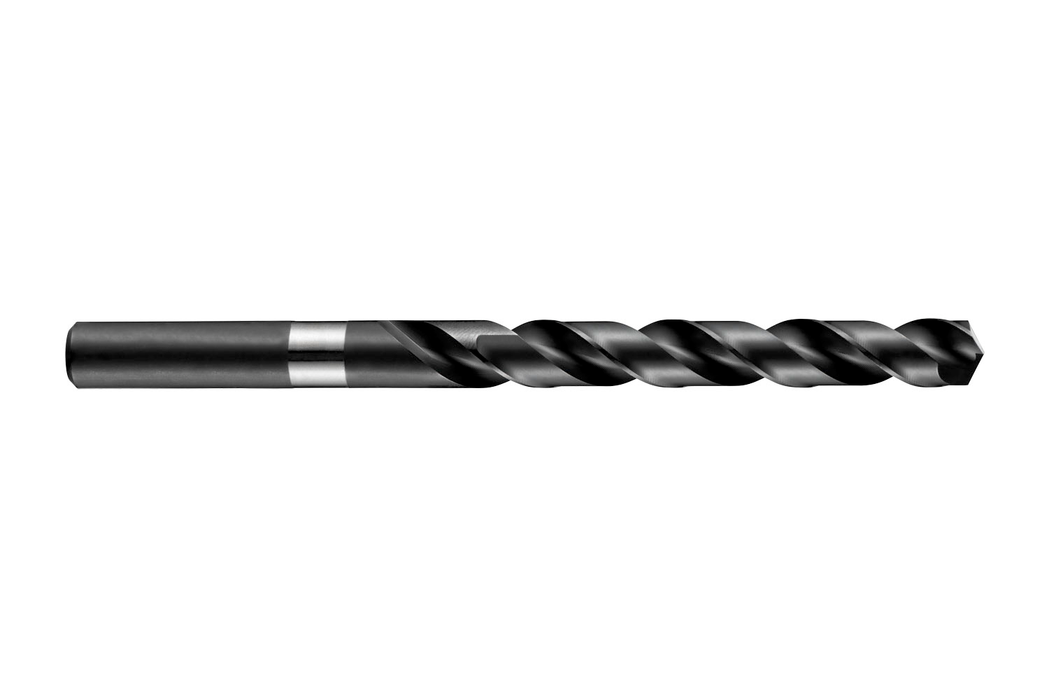

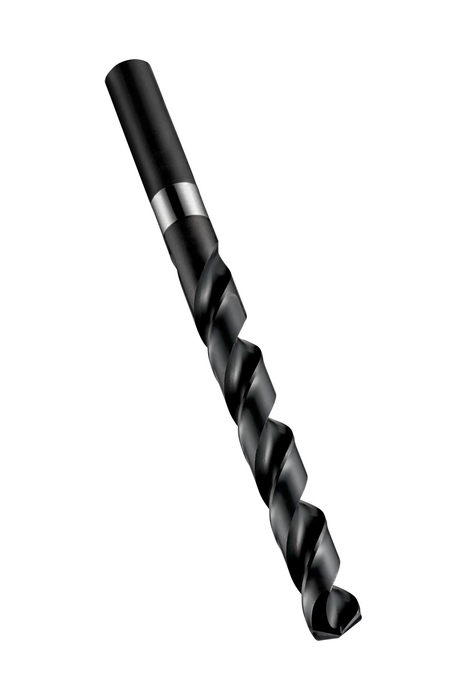

Jobber length drill with straight shank, diameter 0.2344" (15/64) with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.89 - $4.89
$4.89
$4.89 - $4.89
$4.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2344

Cutting Diameter - mm (DC): 5.95

Drill Point Angle - deg: 135

Flute Length: 2.2441

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.6614

Connetion Diameter: 0.2343

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 15/64

Grade: Steam Tempered

EDP: 46305902

EAN: 7320760664827

MFG Part Number: 6305902
