G57016.5

G57016.5

SKU DOR6381764
by Dormer Pramet
Primary Use: Possible Use:

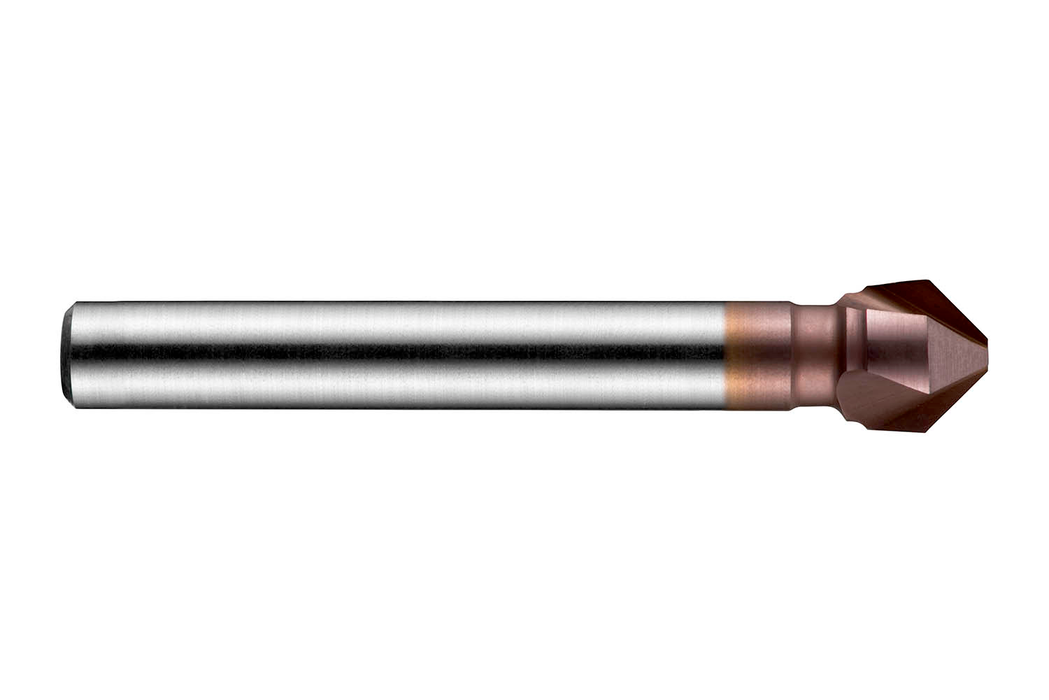

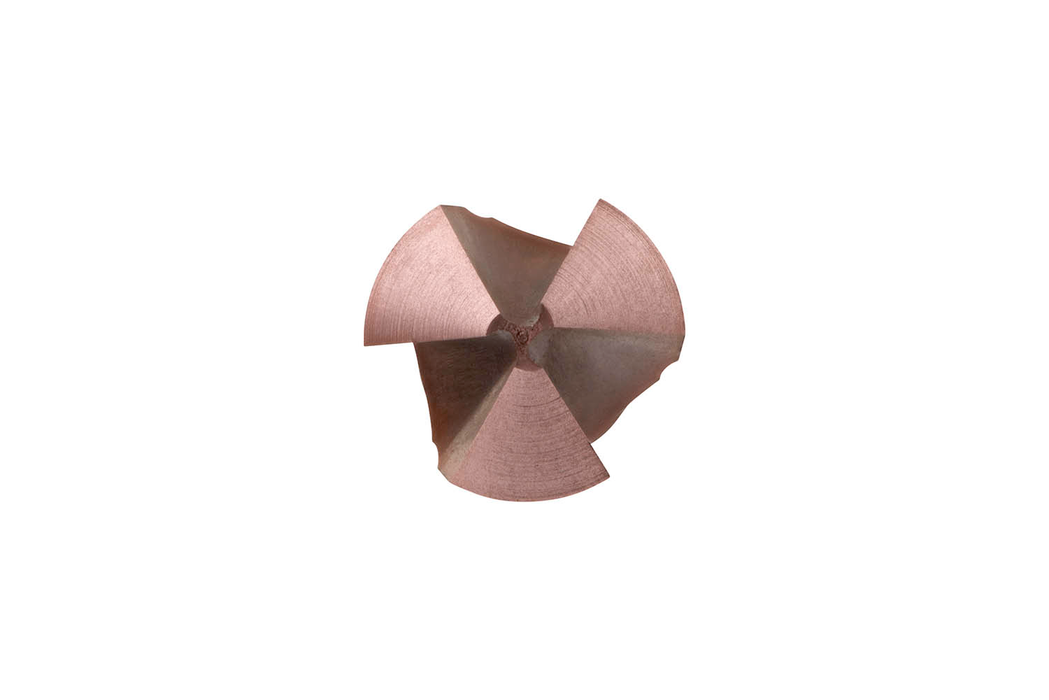

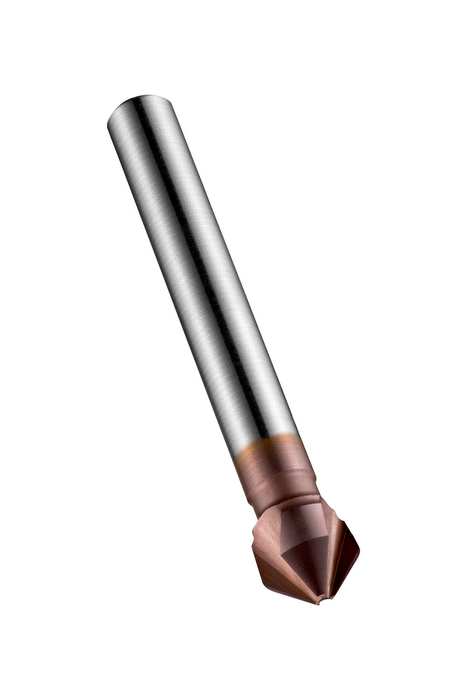

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 13.9mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$96.20 - $96.20
$96.20
$96.20 - $96.20
$96.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

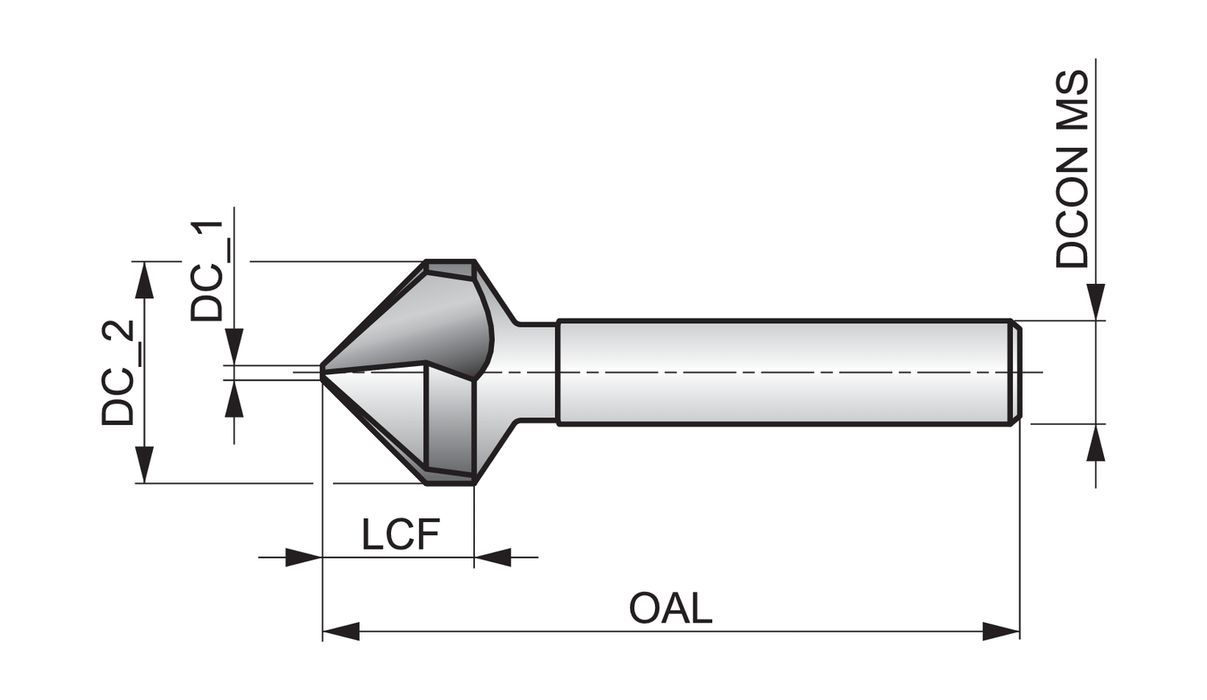

Material: HSS-E

Overall Length (OAL): 2.3622

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: AlTiCN

EDP: 46381764

EAN: 7320760669037

MFG Part Number: 6381764
