G60020.5

G60020.5

SKU DOR6381774
by Dormer Pramet
Primary Use: Possible Use:

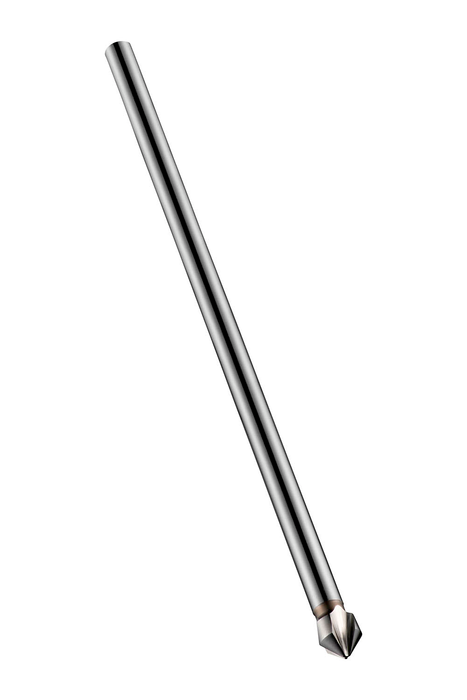

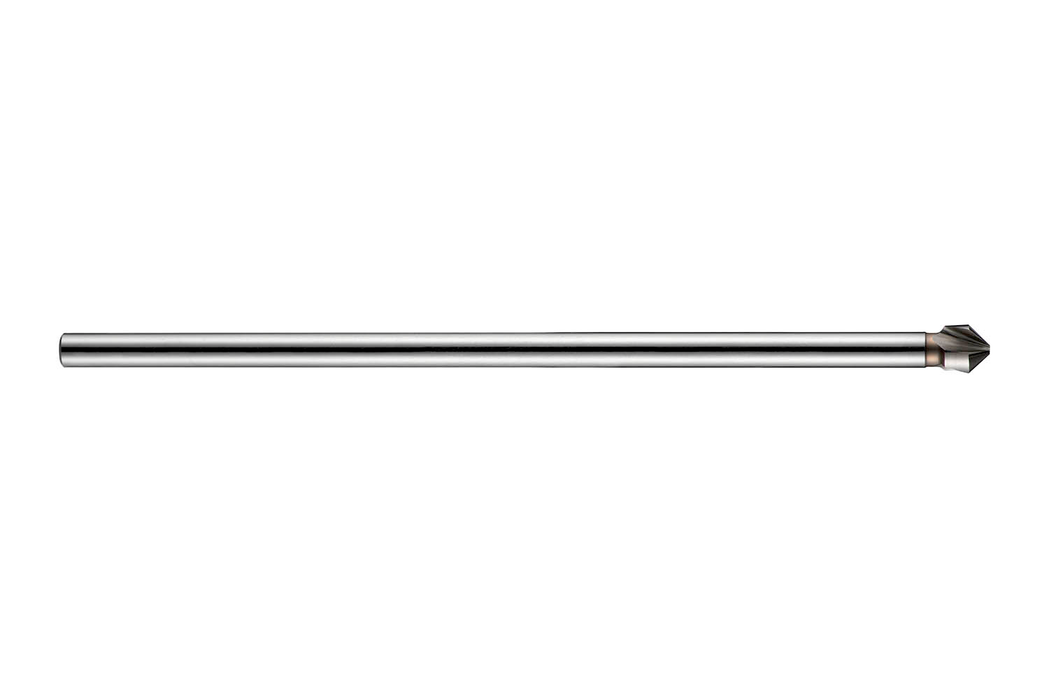

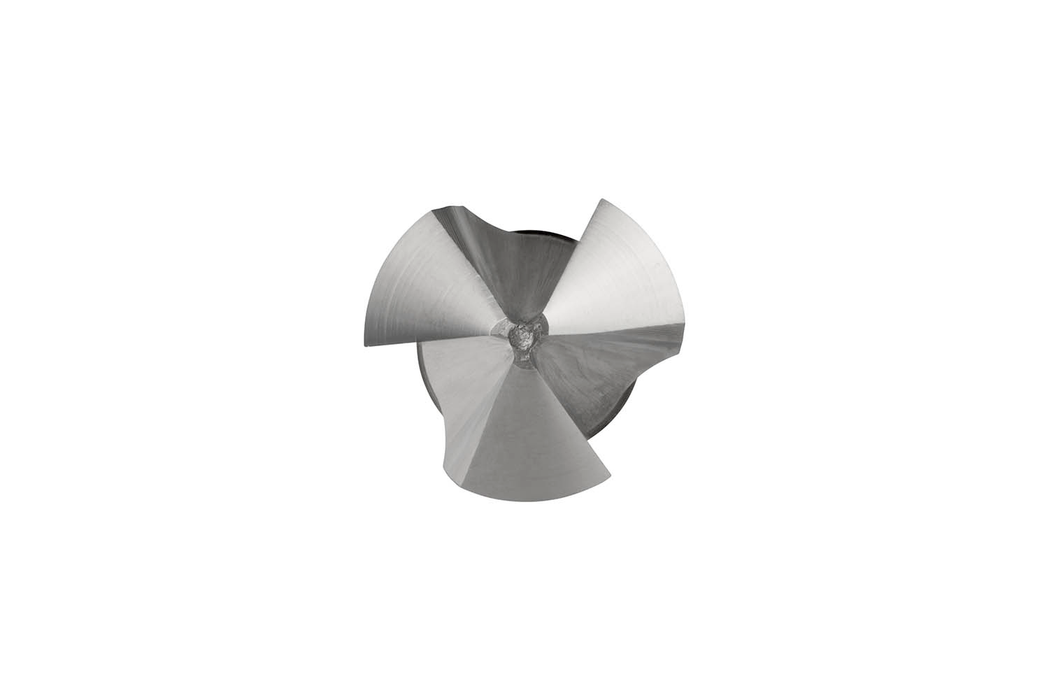

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50mm with an overall length of 164mm and a head length of 12.9mm and 10mm straight extended shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$181.30 - $181.30
$181.30
$181.30 - $181.30
$181.30
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

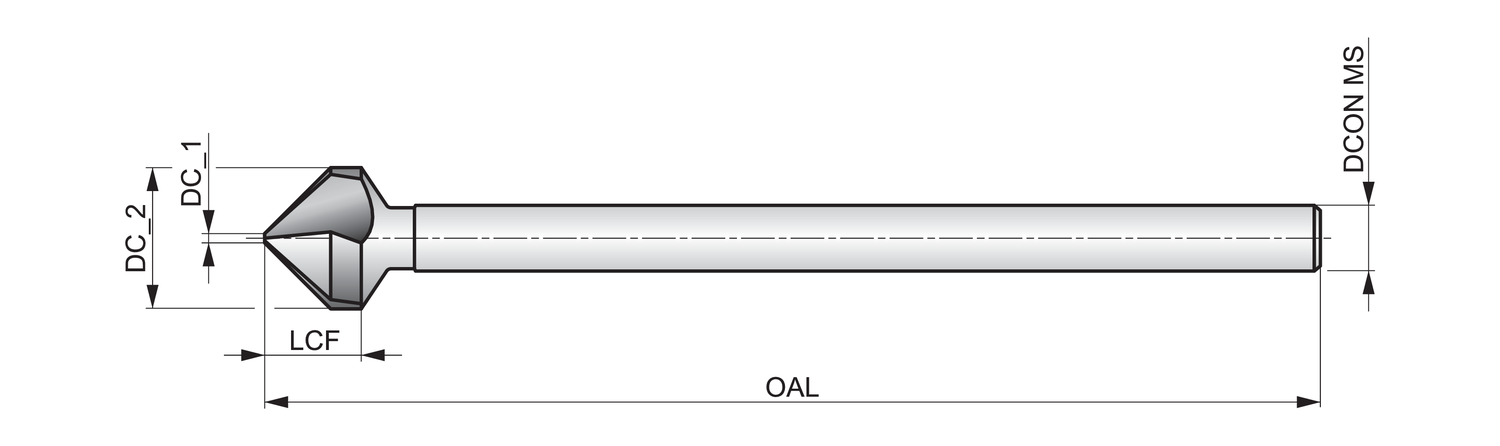

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 6.4567

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 46381774

EAN: 7320760669136

MFG Part Number: 6381774
